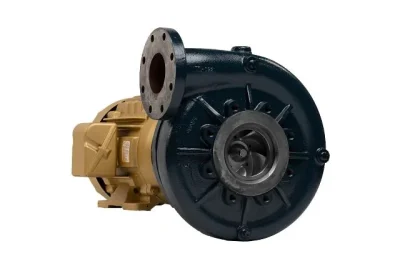

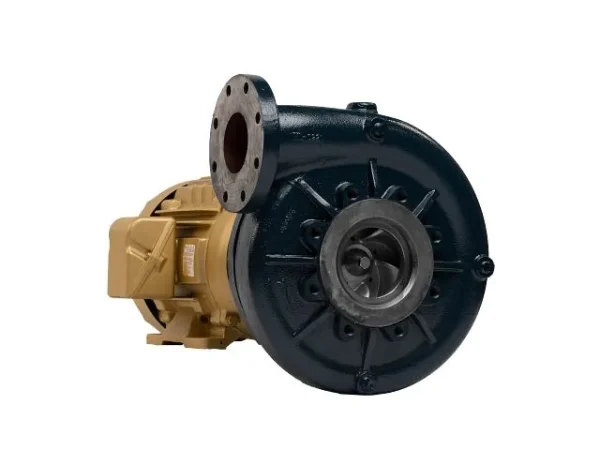

Franklin Electric XS Series Close Coupled Centrifugal Pump
Franklin Electric XS Series Close Coupled Centrifugal Pump was designed with performance, serviceability, and reliability in mind. These pumps include max-life bearings, standard JP motors, additional mounting options, mechanical and packing seals, casing jack-out holes, and enclosed hydraulically balanced impellers for exceptional performance and low NPSH qualities. The Franklin Electric XS Series offers dependable operation in a variety of demanding applications where flow efficiency and durability are essential.
Key Features of the Franklin Electric XS Series Close Coupled Centrifugal Pump
- Volute: Heavy-duty cast iron body with back pullout design. Can be rotated to simplify installation.
- Impeller: Enclosed cast iron impeller, hydraulically balanced for reduced bearing load and enhanced efficiency.
- Seal: Available with packed box and lantern ring or mechanical seal featuring carbon/ceramic faces, Nitrile elastomers, and 300 series stainless steel components.
- Motor: Standard 1800 RPM JP frame motors, available with ODP or TEFC enclosures for varying environmental conditions.
- Mounting: Can be configured for vertical or horizontal installation depending on system layout.
Maintenance Features
- Replaceable shaft sleeve for easy servicing and extended pump life
- Casing jack-out holes allow for quick disassembly and access
- Two-piece stainless steel packing gland for simplified seal servicing
Applications
- Irrigation Systems
- Commercial Water Distribution
- Construction Site Water Transfer
- Municipal Infrastructure
- Light Industrial Use
- General Service Pumping
Contact us for pricing, installation guidance, or technical details on the Franklin Electric XS Series Close Coupled Centrifugal Pump.
Order Information
XS 3 x 4 – 9 NPT MECH. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 74040309100 |
7XS439-CCMHGC |
7.5 hp |
Single-Phase |
230 VAC |
ODP |
Threaded – FNPT |
| 71040309100 |
7XS439-CCMHGC |
7.5 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Threaded – FNPT |
| 74040309110 |
10XS439-CCMJDJ |
10 hp |
Single-Phase |
230 VAC |
ODP |
Threaded – FNPT |
| 71040309110 |
10XS439-CCMJDJ |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Threaded – FNPT |
| 73040309120 |
15XS439-CTMKAA |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Threaded – FNPT |
| 71040309120 |
15XS439-CCMKAA |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Threaded – FNPT |
| 73040309110 |
10XS439-CTMJDJ |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Threaded – FNPT |
XS 3 x 4 – 9 NPT PACK. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 74040309105 |
7XS439-CCPHGC |
7.5 hp |
Single-Phase |
230 VAC |
ODP |
Threaded – FNPT |
| 72040309105 |
7XS439-CTPHGC |
7.5 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Threaded – FNPT |
| 70040309105 |
7XS439-CCPHGC |
7.5 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Threaded – FNPT |
| 74040309115 |
10XS439-CCPJDJ |
10 hp |
Single-Phase |
230 VAC |
ODP |
Threaded – FNPT |
| 72040309115 |
10XS439-CTPJDJ |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Threaded – FNPT |
| 70040309115 |
10XS439-CCPJDJ |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Threaded – FNPT |
| 72040309125 |
15XS439-CTPKAA |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Threaded – FNPT |
| 70040309125 |
15XS439-CCPKAA |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Threaded – FNPT |
XS 3 x 4 – 13 FLG MECH. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 71040313101 |
10XS4313-CCMKBD |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73040313101 |
10XS4313-CTMKBD |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71040313111 |
15XS4313-CCMLHF |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73040313111 |
15XS4313-CTMLHF |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71040313121 |
20XS4313-CCMMHF |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73040313121 |
20XS4313-CTMMHF |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71040313131 |
25XS4313-CCMNDB |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73040313131 |
25XS4313-CTMNDB |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71040313141 |
30XS4313-CCMNHF |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73040313141 |
30XS4313-CTMNHF |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71040313151 |
40XS4313-CCMPAG |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73040313151 |
40XS4313-CTMPAG |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
XS 3 x 4 – 13 FLG PACK. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 70040313100 |
10XS4313-CCPKBD |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72040313100 |
10XS4313-CTPKBD |
10 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70040313110 |
15XS4313-CCPLHF |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72040313110 |
15XS4313-CTPLHF |
15 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70040313120 |
20XS4313-CCPMHF |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72040313120 |
20XS4313-CTPMHF |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70040313130 |
25XS4313-CCPNDB |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72040313130 |
25XS4313-CTPNBD |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70040313140 |
30XS4313-CCPNHF |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72040313140 |
30XS4313-CTPNHF |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70040313150 |
40XS4313-CCPPAG |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72040313150 |
40XS4313-CTPPAG |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
XS 4 x 6 – 13H FLG MECH. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 71060413103 |
20XS6413H-CCMKDJ |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73060413103 |
20XS6413H-CTMKDJ |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71060413113 |
25XS6413H-CCMLCF |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73060413113 |
25XS6413H-CTMLCF |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71060413125 |
30XS6413H-CCMLJJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73060413125 |
30XS6413H-CTMLJJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71060413127 |
30XS6413H-CCMMDJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73060413127 |
30XS6413H-CTMMDJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71060413133 |
40XS6413H-CCMNCF |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73060413133 |
40XS6413H-CTMNCF |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71060413143 |
50XS6413H-CCMPAA |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73060413143 |
50XS6413H-CTMPAA |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
XS 4 x 6 – 13H FLG PACK. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 72060413102 |
20XS6413H-CTPKDJ |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70060413102 |
20XS6413H-CCPKDJ |
20 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 70060413112 |
25XS6413H-CCPLCF |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72060413112 |
25XS6413H-CTPLCF |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70060413124 |
30XS6413H-CCPLJJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72060413124 |
30XS6413H-CTPLJJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70060413126 |
30XS6413H-CCPMDJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72060413126 |
30XS6413H-CTPMDJ |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70060413132 |
40XS6413H-CCPNCF |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72060413132 |
40XS6413H-CTPNCF |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70060413142 |
50XS6413H-CCPPAA |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72060413142 |
50XS6413H-CTPPAA |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
XS 6 x 8 – 13 FLG MECH. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 71080613151 |
25XS8613-CCMKFA |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613151 |
25XS8613-CTMKFA |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613101 |
30XS8613-CCMLAA |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613101 |
30XS8613-CTMLAA |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613111 |
40XS8613-CCMLJJ |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613111 |
40XS8613-CTMLJJ |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613113 |
40XS8613-CCMMBD |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613113 |
40XS8613-CTMMBD |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613121 |
50XS8613-CCMMGD |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613121 |
50XS8613-CTMMGD |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613131 |
60XS8613-CCMMJJ |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613131 |
60XS8613-CTMMJJ |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613133 |
60XS8613-CCMNDB |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613133 |
60XS8613-CTMNDB |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613141 |
75XS8613-CCMNFA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613141 |
75XS8613-CTMNFA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 71080613143 |
75XS8613-CCMPAA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 73080613143 |
75XS8613-CTMPAA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
XS 6 x 8 – 13 FLG PACK. SEAL 1800 RPM
| Item |
Model |
HP |
Phases |
Volts |
Motor Enclosure |
Discharge |
| 70080613150 |
25XS8613-CCPKFA |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613150 |
25XS8613-CTPKFA |
25 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613100 |
30XS8613-CCPLAA |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613100 |
30XS8613-CTPLAA |
30 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613110 |
40XS8613-CCPLJJ |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613110 |
40XS8613-CTPLJJ |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613112 |
40XS8613-CCPMBD |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613112 |
40XS8613-CTPMBD |
40 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613120 |
50XS8613-CCPMGD |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613120 |
50XS8613-CTPMGD |
50 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613130 |
60XS8613-CCPMJJ |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613130 |
60XS8613-CTPMJJ |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613132 |
60XS8613-CCPNDB |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613132 |
60XS8613-CTPNBD |
60 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613140 |
75XS8613-CCPNFA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613140 |
75XS8613-CTPNFA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
| 70080613142 |
75XS8613-CCPPAA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
ODP |
Flange |
| 72080613142 |
75XS8613-CTPPAA |
75 hp |
Three-Phase |
230 VAC / 460 VAC |
TEFC |
Flange |
