Venturi Dry Prime Trash Pump MTP6DZV 6″

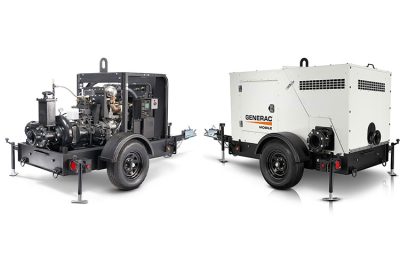

Powerful High-Volume Performance with the CH&E Generac Magnum Venturi Dry Prime Trash Pump MTP6DZV 6″

The CH&E Generac Magnum Venturi Dry Prime Trash Pump MTP6DZV 6″ is a heavy-duty pumping solution designed for contractors, municipal teams, and industrial operators who require dependable high-volume fluid transfer in the most demanding job site conditions. Its 6-inch inlet and outlet deliver strong flow capacity while efficiently handling water loaded with solids, debris, and heavy trash, making it a reliable choice for large-scale construction dewatering, mining operations, flood water removal, and emergency bypass pumping applications.

Advanced Venturi Dry Prime System for Fast and Reliable Startup

The CH&E Generac Magnum Venturi Dry Prime Trash Pump MTP6DZV is equipped with an advanced venturi dry prime system that automatically evacuates air from the pump casing and suction line before each startup, eliminating the need for manual priming or pre-filling the casing with water. This self-priming technology ensures quick, consistent startup across varying field conditions, minimizes operator setup time, and keeps high-volume pumping operations running continuously and efficiently with fewer interruptions on every job site.

About the MTP6DZD 6″ Venturi Dry Prime Trash Pump

This diesel-powered trash pump features a high performance priming system and handles solids up to 3 in. (76.2 mm) in diameter. The final tier 4 engine meets EPA regulations for reduced emissions.

• Spec Sheet
• Warranty
• Operating Manual
• Parts Manual
• Brochure

Powerful & Durable

• High efficiency pump end with best-in-class, lowest suction/discharge height
• High performance priming system
• Handles solids up to 3 in. (76.2 mm) in diameter
• Durable steel roll cage protects pump radiator and other components from damage
• Run-Dry system for continuous operations without need for external flush water or venting

Easy to Use

• Designed for easy service and maintenance
• LOFA CP750 digital controller with large, back-lit LCD display
• Automatic start/stop control for use with two-switch inputs
• Easy conversion to optional sound attenuated flip hood cabinet (dry prime models only)

Additional Features

• Final Tier 4 Engine
• Built-in containment for all engine fluids
• Four-corner leveling for stability and complete fuel usage
• Pad-lockable battery box
• Flip tongue no-weld, removable front plate hitch assembly
• Optional sound attenuated flip hood cabinet (dry prime models only)
