Riverside Replacement Diaphragms

Riverside Replacement Diaphragms for Legacy and Current Pump Applications

Many Riverside diaphragm pumps remain in active service because their simple, serviceable design allows worn components to be replaced instead of replacing the entire pump.

The diaphragm is one of the primary wear components inside a Riverside pump. It repeatedly flexes during operation to create the suction and discharge action needed to move water, sediment, slurry, and other fluids through the pump.

Correct diaphragm sizing, material selection, installation, and routine inspection all contribute to dependable pump performance and longer service life.

Riverside Replacement Diaphragm Sizes

Ken’s Distributing supplies Riverside replacement diaphragms for commonly used 2 inch and 3 inch diaphragm pumps. Some older Riverside models may require non-standard dimensions, so nominal pump size alone should not be used to identify a replacement.

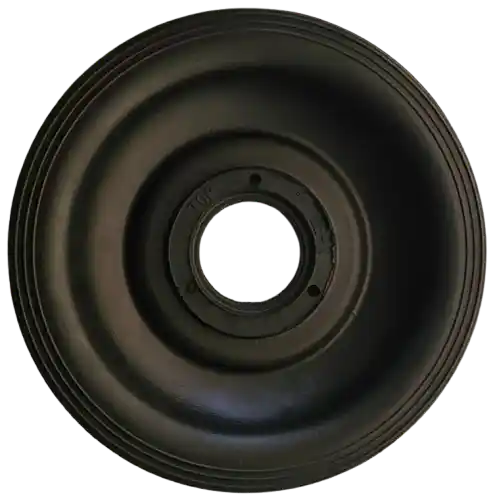

2 Inch Riverside Replacement Diaphragms

Replacement diaphragms for 2 inch Riverside pumps are commonly used in trench dewatering, groundwater removal, light slurry transfer, agricultural water movement, and general construction site pumping.

Available material options may include rubber, neoprene, Buna/nitrile, and TPE/Santoprene depending on the Riverside pump model and application.

Shop 2 Inch Replacement Diaphragms

3 Inch Riverside Replacement Diaphragms

Replacement diaphragms for 3 inch Riverside pumps are commonly used in higher-volume dewatering, agricultural transfer, municipal work, slurry handling, and industrial pumping applications.

Available material options may include rubber, neoprene, Buna/nitrile, and TPE/Santoprene depending on the Riverside pump model and operating requirements.

Shop 3 Inch Replacement Diaphragms

Legacy and Non-Standard Riverside Diaphragms

Older and specialty Riverside pumps may require diaphragm dimensions outside the most common 2 inch and 3 inch applications.

If you are servicing an older Riverside pump, provide Ken’s Distributing with the pump model number, existing diaphragm information, and physical measurements if available. Photographs of the pump housing and diaphragm may also help the parts team identify the appropriate replacement.

Riverside Pump Configurations We Support

Ken’s Distributing supplies replacement diaphragms for Riverside diaphragm pump configurations used in construction, agricultural, municipal, and industrial applications.

• 2 inch Riverside diaphragm pumps
• 3 inch Riverside diaphragm pumps
• Trailer-mounted Riverside dewatering units
• Engine-driven Riverside diaphragm pumps
• Electric-drive Riverside pump configurations
• Selected legacy and discontinued Riverside pump models

If the Riverside pump model cannot be identified from the nameplate, provide a photograph of the pump, diaphragm housing, existing diaphragm, and any visible casting or identification numbers.

Riverside Replacement Diaphragm Materials

The appropriate diaphragm material depends on the fluid being pumped, abrasion, temperature, outdoor exposure, operating hours, and other service conditions.

Neoprene Riverside Diaphragms

Neoprene is commonly selected for Riverside pumps used in construction dewatering, groundwater removal, outdoor operation, sediment-laden water, and slurry applications.

It provides a useful combination of flexibility, physical durability, weather resistance, and resistance to repeated pump cycling.

Common applications include:

• Construction dewatering
• Groundwater removal
• Sediment-laden water
• Outdoor pump operation
• General slurry handling
• Agricultural drainage

Applications involving significant oil, fuel, petroleum products, or aggressive chemicals may require a different diaphragm material.

Learn More About Neoprene Replacement Diaphragms

Rubber Riverside Diaphragms

General-purpose rubber diaphragms are a cost-effective option for Riverside pumps handling clean water, groundwater, drainage water, and lightly sediment-laden water where petroleum and aggressive chemical exposure are minimal.

Common applications include:

• Clean-water dewatering
• Groundwater removal
• Agricultural water transfer
• Surface water pumping
• General water-handling applications

For abrasive slurry, extended outdoor use, or demanding continuous-duty operation, another diaphragm material may provide better service for the application.

Learn More About Rubber Replacement Diaphragms

Buna/Nitrile Riverside Diaphragms

Buna-N, also known as nitrile or NBR, is commonly selected for Riverside applications involving petroleum oils, fuel-contaminated groundwater, lubricants, and other hydrocarbon-containing fluids.

Common applications include:

• Oily wastewater
• Fuel-contaminated groundwater
• Petroleum-containing process water
• Industrial fluid transfer
• Selected remediation applications

Buna/nitrile generally provides greater resistance to petroleum-containing fluids than standard rubber or neoprene. Fluid type and operating conditions should still be reviewed before selecting a diaphragm.

Learn More About Buna/Nitrile Replacement Diaphragms

TPE/Santoprene Riverside Diaphragms

TPE/Santoprene diaphragms may be selected for Riverside pumps operating in high-cycle, continuous-duty, abrasive, outdoor, or otherwise demanding environments where fatigue resistance and durability are priorities.

Common applications include:

• Continuous-duty dewatering
• High-cycle pumping
• Abrasive water-based slurry
• Selected industrial fluids
• Outdoor pumping environments
• Applications where reducing maintenance frequency is important

The actual fluid and operating conditions should be reviewed before selecting TPE/Santoprene for a Riverside pump.

Learn More About TPE Santoprene Replacement Diaphragms

How to Choose a Riverside Diaphragm Material

The most important factor in diaphragm material selection is the fluid being pumped and the environment in which the Riverside pump operates.

Clean water and standard groundwater: Rubber or neoprene may be appropriate depending on outdoor exposure, operating hours, sediment, and service requirements.

Construction slurry and sediment-laden water: Neoprene is commonly selected where abrasion, outdoor durability, and repeated flexing are important.

Agricultural water transfer: Rubber or neoprene may be appropriate depending on the fluid and operating conditions.

Oily wastewater and petroleum-contaminated fluids: Buna/nitrile is commonly selected where greater resistance to oils, fuels, and hydrocarbons is required.

Continuous-duty and demanding operation: TPE/Santoprene may be appropriate where fatigue resistance and longer service intervals are priorities.

If your application involves unusual chemicals, mixed fluids, extreme temperatures, or operating conditions outside standard water and dewatering applications, contact Ken’s Distributing with the Riverside pump information and fluid details before ordering.

Common Applications for Riverside Diaphragm Pumps

Construction and Dewatering

Riverside diaphragm pumps are used for removing groundwater, standing water, trench water, and sediment-laden water from construction sites. Neoprene is commonly selected for mixed-condition outdoor work, while rubber may be suitable for cleaner water applications.

Agricultural and Irrigation Applications

Riverside pumps may be used for irrigation water, drainage water, pond pumping, and other agricultural water-transfer applications. Diaphragm material should be selected according to the actual fluid and service conditions.

Municipal and Utility Work

Riverside diaphragm pumps may be used for temporary water removal, utility maintenance, stormwater work, and other municipal applications where dependable pumping is required.

Industrial Fluid Transfer

Industrial applications may involve process water, wash water, slurry, oily wastewater, or other fluids. Select the diaphragm material according to the fluid characteristics and Riverside pump requirements.

How to Identify the Correct Riverside Replacement Diaphragm

Do not select a diaphragm based on nominal pump size alone. Start with the complete Riverside pump model and any available information from the existing diaphragm.

Useful identification details include:

• Riverside pump model number
• Nominal pump size
• Existing diaphragm part number, if available
• Existing diaphragm material
• Outside diameter and other physical measurements
• Bolt or mounting pattern
• Fluid being pumped
• Operating environment

If the identification tag is missing or unreadable, photographs and measurements can help Ken’s Distributing identify the appropriate Riverside replacement.

Signs a Riverside Diaphragm May Need Replacement

Diaphragm wear may appear gradually as reduced pump performance. Routine inspection can help identify deterioration before a complete diaphragm failure occurs.

Inspect the diaphragm if you notice any of the following:

• The pump takes longer than normal to prime
• Discharge flow decreases under otherwise normal operating conditions
• Pump cycling becomes irregular or labored
• Air appears in the discharge stream
• Visible cracking, cuts, thinning, stiffening, or deformation appears on the diaphragm
• Fluid leaks around the diaphragm cover or housing
• Pump vibration changes noticeably during operation

A visibly damaged diaphragm should be serviced promptly. Continued operation may allow fluid or debris to reach other wear components and increase repair requirements.

Riverside Diaphragm Installation and Maintenance

A Riverside replacement diaphragm performs best when installed correctly and supported by properly maintained valves, seats, and related wear components.

Installation Tips

• Confirm the Riverside model, diaphragm specifications, and selected material before installation.
• Clean the diaphragm housing and mounting surfaces before installing the replacement.
• Compare the replacement diaphragm with the original part for the specific Riverside pump.
• Tighten cover hardware evenly according to the service procedure for the pump.
• Inspect valves, seats, plates, and other wear components while the pump is disassembled.

If the specific Riverside pump uses more than one diaphragm, inspect all diaphragms during service and follow the manufacturer’s recommended replacement procedure.

Maintenance Tips

• Inspect Riverside diaphragms regularly according to operating hours and application conditions.
• Increase inspection frequency for pumps handling abrasive slurry or operating continuously.
• Flush the pump after handling muddy water, slurry, oily water, or chemically active fluids.
• Inspect valves and seats whenever diaphragm service is performed.
• Follow appropriate storage procedures during extended periods of inactivity.

Related Parts for Riverside Diaphragm Pumps

Diaphragms are one of several wear components that should be inspected during Riverside pump service. Depending on the pump model, related maintenance items may include valves, seats, plates, seals, fasteners, and other repair parts.

Valves and Seats

Valve components help control fluid movement through the pump. Worn, damaged, or debris-fouled valves can reduce flow, make priming difficult, and contribute to irregular pump performance.

Inspect these components whenever diaphragm service is performed.

Legacy Riverside Repair Parts

Ken’s Distributing continues to support selected Riverside pump applications where replacement components may be difficult to locate through general pump-parts suppliers.

Contact Ken’s Distributing with the complete Riverside model, photographs, measurements, and existing part information for assistance identifying available repair components.

Bulk Pricing and Blanket Orders for Riverside Diaphragms

Contractors, rental fleets, municipalities, agricultural operations, distributors, and industrial customers maintaining multiple Riverside pumps can reduce downtime by keeping commonly used replacement parts in inventory.

Ken’s Distributing offers bulk pricing and blanket order programs for qualifying Riverside diaphragm orders.

Contact Ken’s Distributing with your Riverside pump information, diaphragm size, material requirements, and estimated annual quantity for pricing.

Learn More About Blanket Orders

Why Buy Riverside Replacement Diaphragms from Ken’s Distributing?

Ken’s Distributing has supplied pump parts to contractors, rental fleets, municipalities, agricultural operations, distributors, and industrial customers since 1991.

For Riverside equipment, the parts team can assist with replacement diaphragm identification using pump models, photographs, physical measurements, and existing part information.

• Support for commonly used and selected legacy Riverside pump models
• Rubber, neoprene, Buna/nitrile, and TPE/Santoprene material options
• Technical assistance with diaphragm identification and material selection
• Bulk pricing for qualifying quantities
• Blanket order programs for recurring replacement requirements
• Shipping throughout the United States and Canada

Shop Replacement Diaphragms by Material

• Rubber Replacement Diaphragms
• Neoprene Replacement Diaphragms
• Buna/Nitrile Replacement Diaphragms
• TPE Santoprene Replacement Diaphragms

Frequently Asked Questions About Riverside Replacement Diaphragms

Do you carry replacement diaphragms for older Riverside pumps?

Ken’s Distributing supplies replacement diaphragm options for commonly used Riverside pumps and selected legacy models. Contact Ken’s Distributing with the model number, photographs, and existing diaphragm measurements to determine what options are available.

Do you carry Riverside diaphragms for 2 inch and 3 inch pumps?

Yes. Ken’s Distributing supplies replacement diaphragm options for commonly used 2 inch and 3 inch Riverside diaphragm pumps. Confirm the complete Riverside model before ordering because nominal pump size alone does not identify the exact diaphragm.

How do I identify a Riverside diaphragm if the pump tag is missing?

Provide photographs of the pump housing and existing diaphragm along with the diaphragm diameter, thickness, mounting pattern, and any visible identification numbers. This information can help Ken’s Distributing identify the appropriate replacement.

Which Riverside diaphragm material should I use?

The appropriate material depends on the fluid and operating environment. Rubber and neoprene are commonly used for water and general dewatering, Buna/nitrile for petroleum-contaminated fluids, and TPE/Santoprene for selected high-cycle or demanding applications.

Can I change the diaphragm material in my Riverside pump?

The diaphragm material should be selected according to the requirements of the specific Riverside pump and application. Do not select a different material based solely on diaphragm dimensions. Confirm the pump information, fluid type, and operating conditions before ordering.

How often should a Riverside diaphragm be replaced?

There is no single replacement interval for every Riverside pump. Service life depends on diaphragm material, operating hours, fluid abrasiveness, pump condition, environment, and maintenance practices. Inspect the diaphragm regularly and service it when performance changes or visible wear appears.

Can I order Riverside replacement diaphragms in bulk?

Yes. Bulk pricing and blanket order programs are available for qualifying contractors, rental fleets, municipalities, agricultural operations, distributors, and businesses maintaining multiple Riverside pumps.

Do you ship Riverside replacement diaphragms to Canada?

Yes. Ken’s Distributing ships replacement diaphragms throughout the United States and Canada. Contact Ken’s Distributing for shipping information on larger, bulk, or recurring orders.
