Multiquip Replacement Diaphragms

Multiquip Replacement Diaphragms for Construction and Dewatering Pumps

Multiquip diaphragm pumps are used in demanding environments where water may contain sediment, mud, slurry, and suspended particles. The diaphragm repeatedly flexes during operation to create the suction and discharge action that moves fluid through the pump.

Because the diaphragm is a primary wear component, correct sizing, material selection, installation, and routine inspection all affect pump performance and service life.

Ken’s Distributing supplies replacement diaphragms for commonly used 2 inch and 3 inch Multiquip diaphragm pumps, including equipment used for construction dewatering, concrete cutting, grinding, municipal work, and industrial water transfer.

Multiquip Replacement Diaphragm Sizes

Ken’s Distributing supplies Multiquip replacement diaphragms for commonly used 2 inch and 3 inch diaphragm pumps. Nominal pump size alone should not be used to identify a replacement, so always confirm the Multiquip model and existing diaphragm specifications before ordering.

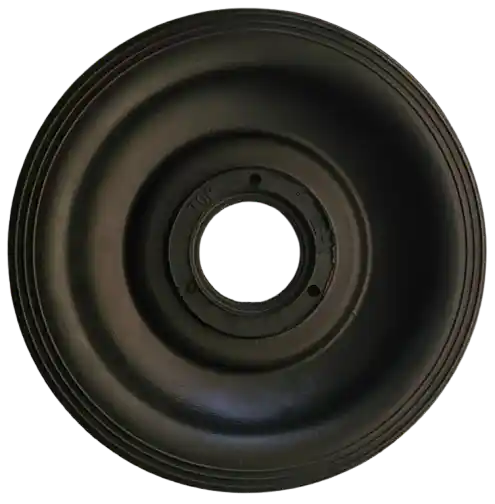

2 Inch Multiquip Replacement Diaphragms

Replacement diaphragms for 2 inch Multiquip pumps are commonly used in trench dewatering, groundwater removal, light slurry transfer, concrete cutting water management, and general construction site pumping.

Available material options may include rubber, neoprene, Buna/nitrile, and TPE/Santoprene depending on the Multiquip pump model and application.

Shop 2 Inch Replacement Diaphragms

3 Inch Multiquip Replacement Diaphragms

Replacement diaphragms for 3 inch Multiquip pumps are commonly used for higher-volume construction dewatering, heavier slurry, industrial water transfer, and extended jobsite operation.

Available material options may include rubber, neoprene, Buna/nitrile, and TPE/Santoprene depending on the Multiquip pump model and operating requirements.

Shop 3 Inch Replacement Diaphragms

Legacy and Non-Standard Multiquip Diaphragms

Older or specialty Multiquip pumps may require diaphragm dimensions outside the most common 2 inch and 3 inch applications.

If you are servicing an older Multiquip pump, provide Ken’s Distributing with the pump model number, existing diaphragm information, and physical measurements if available. Photographs of the pump and diaphragm may also help the parts team identify the appropriate replacement.

Multiquip Pump Configurations We Support

Ken’s Distributing supplies replacement diaphragms for Multiquip diaphragm pump configurations commonly used in construction, dewatering, and industrial applications.

• 2 inch Multiquip diaphragm pumps
• 3 inch Multiquip diaphragm pumps
• Trailer-mounted Multiquip dewatering equipment
• Engine-driven Multiquip diaphragm pumps
• Selected legacy Multiquip pump models still operating in the field

If you cannot identify the exact Multiquip pump model, provide a clear photograph of the model and serial-number plate, pump housing, and existing diaphragm. This information can help Ken’s Distributing identify the appropriate replacement.

Multiquip Replacement Diaphragm Materials

The appropriate diaphragm material depends on the fluid being pumped, abrasion, operating environment, temperature, run time, and other service conditions.

Neoprene Multiquip Diaphragms

Neoprene is commonly selected for Multiquip pumps used in construction dewatering, groundwater control, concrete cutting, grinding slurry, and other outdoor applications.

It provides a useful combination of flexibility, physical durability, weather resistance, and resistance to repeated pump cycling.

Common applications include:

• Construction dewatering
• Groundwater removal
• Concrete cutting and grinding wastewater
• Sediment-laden water
• Outdoor pump operation
• Water-based slurry without significant petroleum contamination

Applications involving significant oil, fuel, petroleum products, or aggressive chemicals may require another diaphragm material.

Learn More About Neoprene Replacement Diaphragms

Rubber Multiquip Diaphragms

General-purpose rubber diaphragms are a cost-effective option for Multiquip pumps handling clean water, groundwater, and lightly sediment-laden water where petroleum and aggressive chemical exposure are minimal.

Common applications include:

• Clean-water dewatering
• Groundwater removal
• Surface water pumping
• General water transfer
• Intermittent construction pumping

For highly abrasive slurry, prolonged outdoor operation, or demanding continuous-duty applications, another diaphragm material may provide better service.

Learn More About Rubber Replacement Diaphragms

Buna/Nitrile Multiquip Diaphragms

Buna-N, also known as nitrile or NBR, is commonly selected for Multiquip applications involving petroleum oils, fuel-contaminated groundwater, lubricants, hydraulic fluids, and other hydrocarbon-containing fluids.

Common applications include:

• Oily wastewater
• Fuel-contaminated groundwater
• Petroleum-containing wash water
• Industrial maintenance applications
• Selected remediation and fluid-transfer applications

Buna/nitrile generally provides greater resistance to petroleum-containing fluids than standard rubber or neoprene. Fluid type and operating conditions should still be reviewed before selecting a diaphragm.

Learn More About Buna/Nitrile Replacement Diaphragms

TPE/Santoprene Multiquip Diaphragms

TPE/Santoprene diaphragms may be selected for Multiquip pumps operating in high-cycle, continuous-duty, abrasive, outdoor, or other demanding environments where fatigue resistance and durability are priorities.

Common applications include:

• Continuous-duty dewatering
• High-cycle concrete cutting and grinding slurry
• Abrasive water-based slurry
• Selected industrial fluids
• Outdoor pumping environments
• Applications where reducing maintenance frequency is important

The specific fluid and operating conditions should be reviewed before selecting TPE/Santoprene for a Multiquip pump.

Learn More About TPE Santoprene Replacement Diaphragms

How to Choose a Multiquip Diaphragm Material

The quickest way to narrow diaphragm material selection is to start with the fluid being pumped and the operating environment.

Clean water and standard groundwater: Rubber or neoprene may be appropriate depending on outdoor exposure, operating hours, sediment, and service requirements.

Construction slurry and sediment-laden water: Neoprene is commonly selected where abrasion, outdoor durability, and repeated flexing are important.

Concrete cutting and grinding wastewater: Neoprene is commonly used for standard water-based slurry applications. TPE/Santoprene may be considered for selected high-cycle or continuous-duty operation.

Oily wastewater and petroleum-contaminated fluids: Buna/nitrile is commonly selected where greater resistance to oils, fuels, and hydrocarbons is required.

Continuous-duty and demanding applications: TPE/Santoprene may be appropriate where fatigue resistance and longer service intervals are priorities.

If the application involves unusual chemicals, solvents, mixed fluids, extreme temperatures, or operating conditions outside normal construction and dewatering use, contact Ken’s Distributing with the Multiquip model and fluid details before ordering.

Common Applications for Multiquip Diaphragm Pumps

Construction and Dewatering

Multiquip diaphragm pumps are commonly used to remove groundwater, rainwater, trench water, and sediment-laden water from construction sites. Rubber or neoprene may be appropriate depending on the fluid and operating conditions.

Concrete Cutting and Grinding Slurry

Concrete cutting and grinding operations produce water containing fine suspended particles. Neoprene is commonly selected for these applications because of its balance of flexibility, physical durability, and resistance to outdoor conditions.

TPE/Santoprene may also be considered for selected high-cycle or continuous-duty slurry applications.

Groundwater Control

Multiquip pumps used for excavation and groundwater control may operate for extended periods. Diaphragm selection should account for sediment, operating hours, outdoor exposure, and any petroleum or chemical contamination in the water.

Municipal and Utility Work

Multiquip diaphragm pumps may be used for temporary water removal, stormwater management, utility maintenance, and similar applications where the pump must handle water containing sediment or debris.

Industrial Fluid Transfer

Industrial applications may involve process water, wash water, slurry, or petroleum-contaminated fluids. The diaphragm material should be selected according to the actual fluid and operating conditions.

How to Identify the Correct Multiquip Replacement Diaphragm

Do not select a diaphragm based on nominal pump size alone. Start with the complete Multiquip model number and any existing diaphragm information.

Useful identification details include:

• Multiquip pump model number
• Nominal pump size
• Existing diaphragm part number, if available
• Existing diaphragm material
• Physical diaphragm measurements
• Fluid being pumped
• Operating environment and duty cycle

If the identification tag is missing or unreadable, provide photographs of the pump, diaphragm housing, engine or drive arrangement, and existing diaphragm.

Signs a Multiquip Diaphragm May Need Replacement

Diaphragm wear often appears gradually. Regular inspection can help identify deterioration before a complete failure causes additional pump downtime.

Inspect the diaphragm if you notice any of the following:

• The pump takes longer than normal to prime
• Discharge flow decreases under otherwise normal conditions
• Pump cycling becomes irregular or labored
• Air appears in the discharge stream
• Visible cracks, splits, thinning, stiffening, or deformation appear on the diaphragm
• Fluid leaks around the diaphragm housing or cover area
• Pump vibration changes noticeably during operation

A visibly damaged diaphragm should be serviced promptly. Continued operation may allow fluid or abrasive debris to reach other wear components and increase repair requirements.

Multiquip Diaphragm Installation and Maintenance

A replacement diaphragm performs best when installed correctly and supported by properly maintained valves, seats, and related wear components.

Installation Tips

• Confirm the Multiquip model, diaphragm specifications, and selected material before installation.
• Clean the diaphragm housing and mounting surfaces before installing the replacement.
• Confirm the replacement diaphragm against the original part for the specific Multiquip pump.
• Tighten cover hardware evenly according to the service procedure for the pump model.
• Inspect valves, seats, plates, and related wear components while the pump is disassembled.

If the specific Multiquip pump uses more than one diaphragm, inspect all diaphragms during service and follow the manufacturer’s recommended replacement procedure.

Maintenance Tips

• Inspect Multiquip diaphragms regularly according to operating hours and application conditions.
• Increase inspection frequency for pumps handling abrasive slurry or running continuously.
• Flush the pump after handling concrete slurry, sediment, oily water, or chemically active fluids.
• Do not allow concrete slurry or sediment to harden inside the pump housing.
• Inspect valves and seats whenever diaphragm service is performed.
• Follow Multiquip storage recommendations during extended periods of inactivity.

Related Parts for Multiquip Diaphragm Pumps

Diaphragms are one of several wear components that should be inspected during Multiquip pump service. Depending on the pump model, related maintenance items may include valves, seats, plates, seals, fasteners, and other repair components.

Valves and Seats

Valve components help control fluid movement through the pump. Worn, damaged, or debris-fouled valves can reduce flow, contribute to difficult priming, and cause irregular pump performance.

Inspect these components whenever diaphragm service is performed.

Repair and Rebuild Parts

Ken’s Distributing supplies replacement components for selected Multiquip diaphragm pump models. Availability depends on the specific pump configuration.

Contact Ken’s Distributing with the complete Multiquip model number for assistance identifying diaphragm pump repair parts.

Bulk Pricing and Blanket Orders for Multiquip Diaphragms

Contractors, rental fleets, municipalities, distributors, and industrial operations maintaining multiple Multiquip diaphragm pumps can reduce downtime by keeping frequently used replacement parts in inventory.

Ken’s Distributing offers bulk pricing and blanket order programs for qualifying Multiquip diaphragm orders. These programs can help simplify recurring purchasing and maintain planned replacement-part inventory.

Contact Ken’s Distributing with your Multiquip pump model, diaphragm size, material requirements, and estimated annual quantity for pricing information.

Learn More About Blanket Orders

Why Buy Multiquip Replacement Diaphragms from Ken’s Distributing?

Ken’s Distributing has supplied pump parts to contractors, rental fleets, municipalities, distributors, and industrial customers since 1991.

Customers can contact the parts team for assistance identifying Multiquip replacement diaphragms using pump model numbers, existing part information, diaphragm measurements, and application details.

• Replacement diaphragm assistance by Multiquip model and application
• Rubber, neoprene, Buna/nitrile, and TPE/Santoprene material options
• Support for standard and harder-to-identify pump applications
• Bulk order pricing for qualifying quantities
• Blanket order programs for recurring diaphragm requirements
• Shipping throughout the United States and Canada

Shop Replacement Diaphragms by Material

• Rubber Replacement Diaphragms
• Neoprene Replacement Diaphragms
• Buna/Nitrile Replacement Diaphragms
• TPE Santoprene Replacement Diaphragms

Frequently Asked Questions About Multiquip Replacement Diaphragms

How do I identify the correct Multiquip diaphragm for my pump?

Start with the complete Multiquip model number and existing diaphragm information if available. Pump size, diaphragm material, physical measurements, and application details can also help Ken’s Distributing identify the appropriate replacement.

Do you carry Multiquip diaphragms for 2 inch and 3 inch pumps?

Yes. Ken’s Distributing supplies replacement diaphragm options for commonly used 2 inch and 3 inch Multiquip diaphragm pumps. Confirm the complete Multiquip model before ordering because nominal pump size alone does not identify the exact diaphragm.

Which Multiquip diaphragm material is commonly used for concrete cutting slurry?

Neoprene is commonly selected for water-based concrete cutting and grinding slurry because it provides useful resistance to abrasion, outdoor exposure, and repeated flexing. TPE/Santoprene may be considered for selected high-cycle or continuous-duty applications.

Which diaphragm material should I use if the water contains oil or fuel?

Buna/nitrile is commonly selected for applications involving petroleum oils, fuel-contaminated groundwater, lubricants, and related hydrocarbon-containing fluids. The actual fluid and operating conditions should still be reviewed before ordering.

Can I change the diaphragm material in my Multiquip pump?

The diaphragm material should be selected according to the requirements of the specific Multiquip pump and application. Do not select a different material based solely on physical dimensions. Confirm the pump model, diaphragm specifications, fluid type, and operating conditions before ordering.

How often should a Multiquip diaphragm be replaced?

There is no single replacement interval that applies to every Multiquip pump. Service life depends on operating hours, diaphragm material, fluid abrasiveness, pump condition, maintenance practices, and operating environment. Regular inspection is more reliable than applying one fixed replacement schedule to every pump.

Do you carry other Multiquip diaphragm pump repair parts?

Ken’s Distributing supplies selected valves, seats, wear components, and repair parts for Multiquip diaphragm pumps. Contact Ken’s Distributing with your complete pump model number to identify the appropriate components.

Can I order Multiquip replacement diaphragms in bulk?

Yes. Bulk pricing and blanket order programs are available for qualifying contractors, rental fleets, municipalities, distributors, and businesses maintaining multiple Multiquip pumps. Contact Ken’s Distributing with your pump information and estimated annual quantity for pricing details.

Do you ship Multiquip replacement diaphragms to Canada?

Yes. Ken’s Distributing ships replacement diaphragms throughout the United States and Canada. Contact Ken’s Distributing for shipping information on larger, bulk, or recurring orders.
