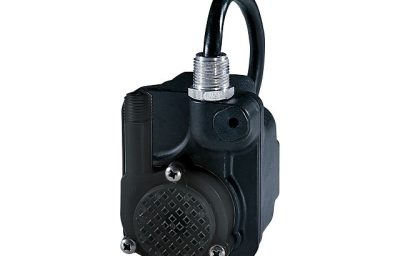

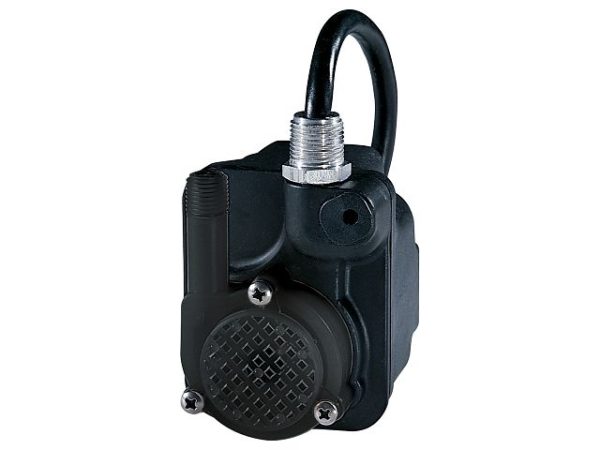

The 1-EAYS parts washer pump is a submersible epoxy encapsulated pump designed for use with metal parts cleaning solvent which is UL classified as PJQU, as described in the Gas and Oil Equipment Directory.
Little Giant’s 1-EAYS parts washer pump consists of an epoxy capsulated motor with nylon volute, impeller, and screen. It features a conduit connection to protect the power cord from the cleaning solvent. The flow rate for the parts washer pump is 170 gph at 1′.
| Capacity | 170 gph @ 1′ |
| Shut Off | 7′ (2.1 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ (6 mm) NPT |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 0.6 A |
| Head | GPH (LPH) |
| 1′ | 170 (643.5) |
| 3′ | 140 (530) |
| 5′ | 100 (378.5) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 518020 | 1-EAYS | 115 VAC | 2.83 gpm / 170 gph | 7 ft | 6 ft |
