This parts washer pump is for use with Stoddard solvent and deodorized kerosene submerged parts washer applications only. These refined petroleum distillates from the parts washer pump are free from the tendency to heat spontaneously and have a closed cup flash point no lower than 100 °F (37.8 °C).

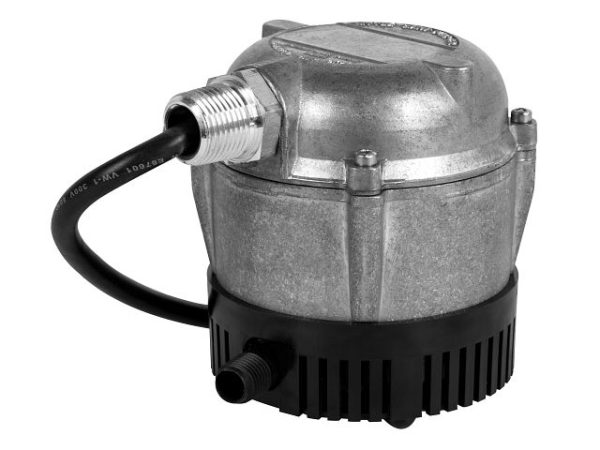

The 1-YS is a 1/150 horsepower cast aluminum, submersible oil-filled parts washer pump. It has a double-lip Viton seal and nylon volute with 1/4″ MNPT discharge. The parts washer pump has a maximum flow rate of 205 gph @ 1′. Its equipped with a 6′ power cord without a plug has a “Master Builders” conduit fitting at pump housing for mounting.
| Capacity | 205 gph @ 1′ |
| Shut Off | 7.4′ (2.3 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ (6 mm) NPT |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 1.1 A 230 V, 50/60 Hz, 0.6 A |
| Head | GPH (LPH) |
| 1′ | 205 (776) |
| 3′ | 168 (635.9) |
| 5′ | 120 (454.2) |
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 501020 | 1-YS | 115 VAC | 3.42 gpm / 205 gph | 7.4 ft | 6 ft | |
| 501036 | 1-YS | 230 VAC | 3.41 gpm / 205 gph | 7.4 ft | 6 ft |
