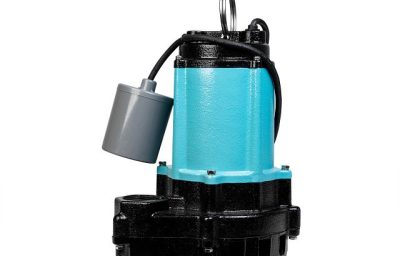

The 10ECH Series effluent pump has a long life cycle and is built to handle heavy effluent. Big on performance and endurance, the 10ECH’s robust horsepower with multiple switch options packs a powerful punch to residential wastewater removal and dewatering applications.
Able to tackle heavy effluent wastewater with higher-head flow fast and efficiently, the 10ECH Series effluent pump is a Little Giant all-star. Its continuous-duty design is driven by the 1/2 horsepower thermal-protected motor that helps deliver an energy-saving low amp draw. Combined with a solids handling capability of 3/4″, the 10ECH Series effluent pump is a steady top performer.
| Capacity | 60 gpm @ 5′ |
| Shut Off | 60′ (18.3 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 1-1/2″ (38.1 mm) |
| Impeller | Thermoplastic Elastomer |
| Electrical | 115 V, 60 Hz, 9 A |
| Operation | Automatic or Manual |
| Head | GPM (LPM) |
| 5′ | 60 (227) |
| 10′ | 55 (208) |
| 20′ | 45 (170) |
| 30′ | 30 (114) |
| 40′ | 15 (57) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|

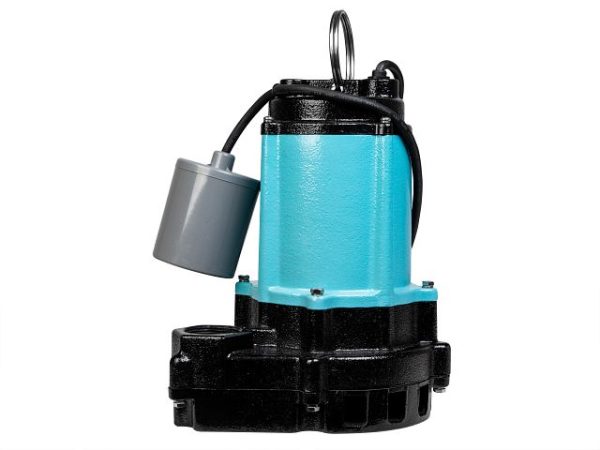

| 511621 | 10ECH-CIA-RF | 115 VAC | Piggyback Mechanical Float | 20 ft | 1.5 “ |
| 511622 | 10ECH-CIA-RF | 115 VAC | Piggyback Mechanical Float | 30 ft | 1.5 “ |
| 511623 | 10ECH-CIA-SFS | 115 VAC | Integral Mechanical Float | 20 ft | 1.5 “ |
| 511624 | 10ECH-CIA-SFS | 115 VAC | Integral Snap-Action Float | 30 ft | 1.5 “ |
| 511625 | 10ECH-CIM | 115 VAC | Manual | 20 ft | 1.5 “ |
| Item | Description |
|---|---|
| 513408 | Oil Sensing Switch Kit, 115V, 60HZ Plus 10ECH-CIA-RF 1/2 HP Pump |
