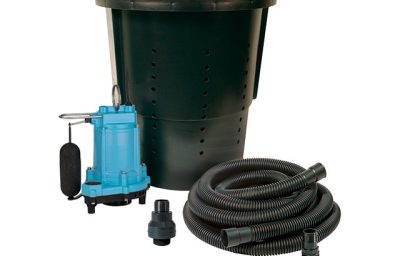

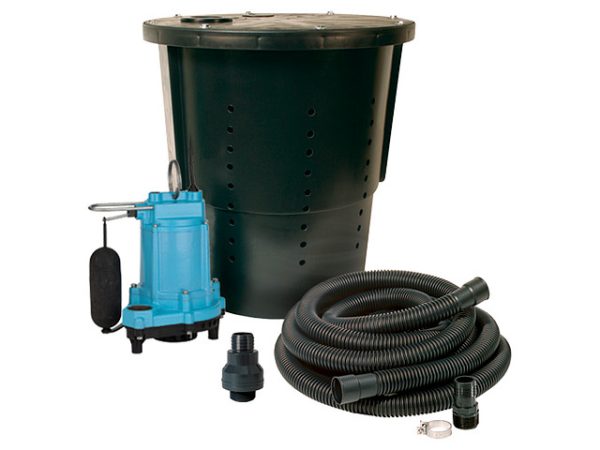

The ideal solution to help prevent water and moisture from collecting in the low areas of your crawl space, yard, patio or driveway. The basin for this system is 18 inches in diameter by 22 inches high and the on/off levels for this pump are set for shallower systems. This pump comes on at 7 to 10 inches and turns off at 2 to 5 inches. 1/3 HP cast-iron pump with overload protection.
| Item: | 14940655 |
| Model: | CS-SS |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 50 gpm / 3000 gph |
| Shut-Off | 28 ft |
| Shut Off Height – 60Hz | 28 ft |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Intake Screen Material | Nylon |
| Seal Material | Carbon/Ceramic, Nitrile |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 21 “ |
| Product Width | 21 “ |
| Product Height | 22.1 “ |
| Pump Length | 10.66 “ |
| Product Weight | 41 lb |
| Product Weight w/ Pack | 41 lb |
| Carton Length | 21 “ |
| Carton Width | 21 “ |
| Carton Height | 22.1 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 36 Months |
