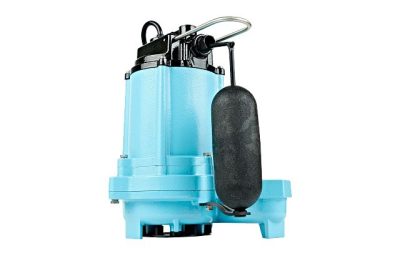

15EC Series Sump Pump

15EC Series Sump Pump

A beefy ¾ horsepower addition to the Little Giant lineup, the 15EC Series sump and effluent pump can tackle even light commercial jobs with ease. The completely submersible body is built like a Little Giant for years of durability. Ideal for a variety of wastewater, sewage removal, dewatering and water transfer applications.

Features & Benefits

  • ¾ hp Permanent Split Capacitor (PSC) motor
  • 1-½” FNPT discharge
  • Thermally protected motor
  • Completely submersible, designed for continuous duty operation
  • Fully automatic with integral vertical flot switch
  • Cast iron motor housing, base and cover
  • Capable of passing ¾” semi-solids

Overview

Get continuous operation for effluent wastewater removal. The 15EC Series features a thermally protected motor and offers fully automatic on/off capabilities via an integral vertical float switch.

Click to rate this post!
[Total: 0 Average: 0]

Specifications

Capacity 80 gpm @ 5′
Shut Off 28′ (8.5 m)
Max. Liquid Temp. 140 °F (60 °C)
Discharge 1-1/2″ (38.1 mm)
Impeller Nylon
Electrical 115 V, 60 Hz, 8 A, 800 W
Operation Automatic

Performance

Performance

Head GPM (LPM)
5′ 80 (302.8)
10′ 66.7 (252.5)
15′ 56.7 (214.6)
20′ 45 (170.3)
25′ 30 (113.6)


Order Information

14942784_15EC_CIA_SFS_Left_Side.psd

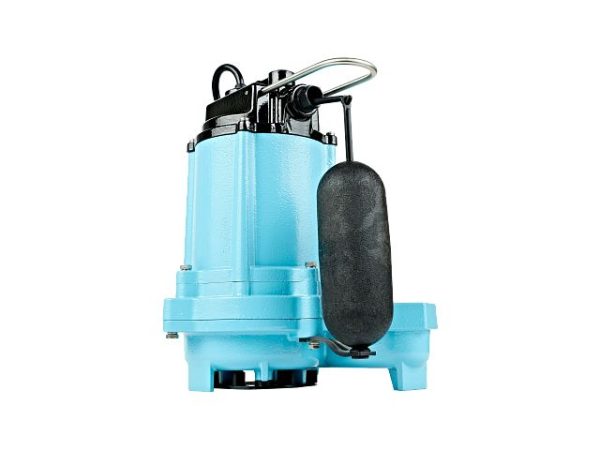

15EC Series Sump Pump

Item Model Volts Switch Type Cord Length Discharge
14942784 15EC-CIA-SFS (115V, 10-Ft Cord, Integral Snap-Action Switch) 115 VAC Integral Snap-Action Float 10 ft 1.5 “
