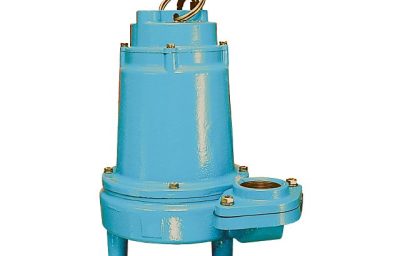

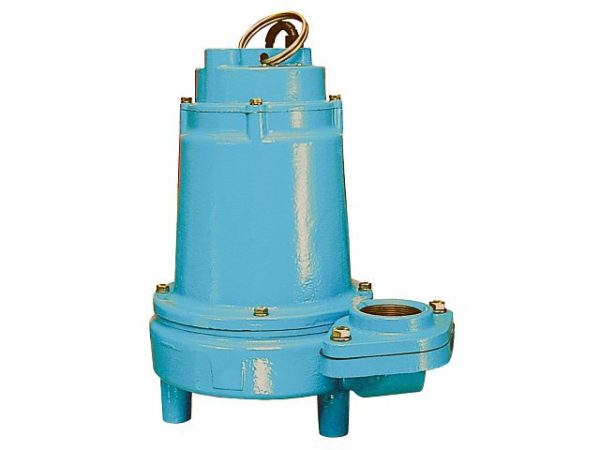

When high-performance matters, Little Giant delivers. Capable of high-speeds of up to 3450 rpm, the 1hp 16EH Series effluent pump is the consummate performer in water transfer, dewatering, and effluent wastewater removal for high-head residential, industrial, and commercial applications.
With the ability to optimize power with up to 3450 rpm, the 16EH Series effluent pump has a high-head range to draw water at 90 GPM in 30′. This single-phase pump can use a mechanical float switch or a single-phase control panel for automatic on/off operations. Equipped with a 20′ power cord for ease of use. This pump powerhouse brings both durability and credibility to effective effluent removal.
| Capacity | 90 gpm @ 30′ |
| Shut Off | 81′ (24.7 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 2″ FNPT (51 mm) |
| Impeller | Epoxy-coated cast iron |
| Electrical | 230 V, 60 Hz, 10.2 A |
| Operation | Manual |
| Head | GPM (LPM) |
| 30′ | 90 (340.7) |
| 40′ | 70 (265) |
| 50′ | 50 (189.3) |
| 60′ | 30 (113.6) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 514530 | 16EH-CIM | 208-230 VAC | Manual | 20 ft | 2 “ |
| 514540 | 16EH-CIM | 460 VAC | Manual | 20 ft | 2 “ |
