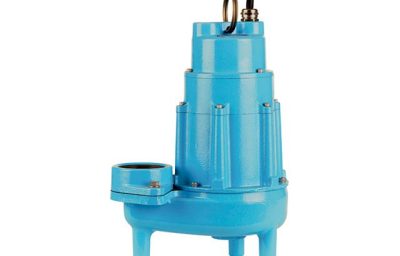

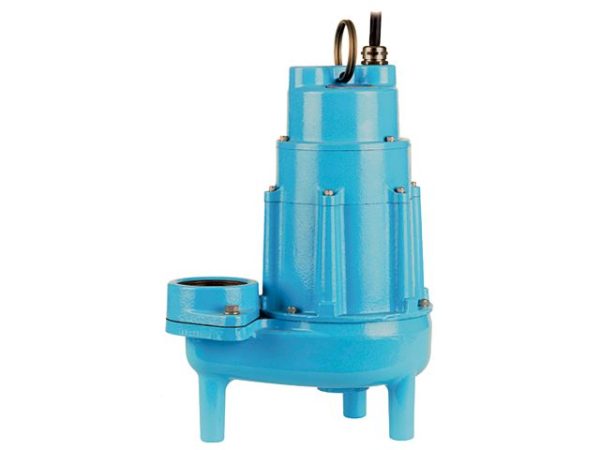

The 20E Series effluent pump is engineered to maneuver the rigid demands of effluent and sewage waste transfer with high-efficiency and long-term dependability in residential, commercial, industrial, and agricultural applications. Used for dewatering, effluent waste, wastewater, and sewage handling where such materials must be moved upward from a collection point to sewer, septic, or drainage areas.
Built to take on the challenges of high-flow or high-head applications, the 20E Series effluent pump is the heavy-hitter when it comes to effluent wastewater removal. Driven by a vigorous 2 horsepower permanent split capacitor (PSC) motor, the 20E also includes a high-efficiency cast iron impeller for high-performance and efficient water flow. Easy to install and maintain, the 20E Series brings superior performance to an application.
| Capacity | 135 gpm @ 20′ |
| Shut Off | 110′ (33.5 m) |
| Max. Liquid Temp. | 140 °F (60 °C) |
| Discharge | 2″ NPT (51 mm) |
| Impeller | Cast iron |
| Electrical | 230 V, 60 Hz, 16.4 A |
| Operation | Manual |
| Head | GPM (LPM) |
| 20′ | 135 (511) |
| 30′ | 125 (473.2) |
| 40′ | 110 (416.4) |
| 60′ | 89 (336.9) |
| 80′ | 62 (234.7) |
| Item | Model | Volts | Switch Type | Cord Length | Discharge |
|---|---|---|---|---|---|
| 520225 | 20E-CIM | 200 VAC | Manual | 20 ft | 2 “ |
| 520250 | 20E-CIM | 230 VAC | Manual | 20 ft | 2 “ |
| 520275 | 20E-CIM | 460 VAC | Manual | 20 ft | 2 “ |
