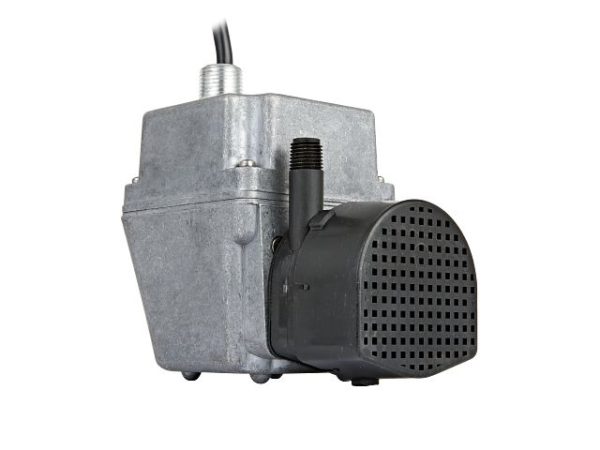

2E-NYS Series Parts Washer Pump
The 2E-NYS parts washer pump is used for circulating unheated Stoddard solvent or deodorized kerosenes. Its die-cast aluminum design provides durability to handle a variety of cleaning solvents for longevity.
Features & Benefits
- 1/40 horsepower motor
- Cast aluminum housing
- Nylon volute
- Fluoroelastomer (FKM) shaft seal
- 1/2″ (12.7 mm) conduit fitting
- Continuous duty
Overview
This parts washer pump is designed for circulating unheated stoddard solvent, deodorized kerosene, parts washers, and other similar liquids. It is equipped with a nylon volute and impeller, polyethylene strainer, and a Viton seal. The parts washer pump has a die-cast aluminum housing and a shut-off of 11.8′. It has 5.1 PSI and is 1/40 horsepower.
Specifications
| Capacity | 300 gph @ 1′ |
| Shut Off | 11.8′ (3.6 m) |
| Max. Liquid Temp. | 120 °F (49 °C) |
| Discharge | 1/4″ MNPT (6 mm) |
| Impeller | Nylon |
| Electrical | 115 V, 60 Hz, 1.7 A |
Performance
| Head | GPH (LPH) |
| 1′ | 300 (1135.6) |
| 3′ | 255 (965.3) |
| 5′ | 205 (776) |
| 9′ | 70 (265) |
Order Information
2E-NYS Series Parts Washer Pump
| Item | Model | Volts | Maximum Flow Rate – 60Hz | Shut-Off | Flow Rate At 1ft | Cord Length |
|---|---|---|---|---|---|---|
| 502020 | 2E-NYS | 115 VAC | 5 gpm / 300 gph | 11.8 ft | 6 ft |
