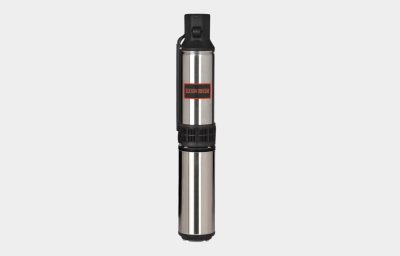

4″ Submersible Well Pumps
APPLICATIONS
Ideal for the supply of fresh water to rural homes, farms, and cabins that have 4″ and greater diameter drilled wells to depths of 250′.
FEATURES & BENEFITS
- Powered by industry standard 2- or 3-wire motors
- Thermoplastic discharge and motor bracket
- Stainless steel pump shell
- Built-in suction screen and check valve
- 12 gpm and 22 gpm models available
- Control box included with all 3-wire pumps (1/2 hp to 1 hp)
Product Info
| Model | Item Number | UPC | HP | Wires | Amps/Volts | Depth to water | Discharge Pressure PSI | Disc. | Shut Off | Max Flow GPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | ||||||||||
| Gallons Per Minute | ||||||||||||||||||
| RL12G05-2W1V | 14942401 | 0 10121 14177 3 | 1/2 | 2 | 12/115 | 20′ | – | 19 | 18 | 16 | 15 | 14 | 12 | 10 | 6 | 1-1/4″ FNPT | 231′ | 12 |
| 40′ | 19 | 18 | 16 | 15 | 14 | 13 | 11 | 7 | 2 | |||||||||
| 60′ | 18 | 17 | 16 | 14 | 13 | 11 | 7 | 3 | – | |||||||||
| 80′ | 17 | 16 | 15 | 13 | 11 | 8 | 3 | – | – | |||||||||
| 100′ | 16 | 15 | 13 | 11 | 8 | 4 | – | – | – | |||||||||
| 140′ | 14 | 12 | 9 | 8 | – | – | – | – | – | |||||||||
| 200′ | 7 | 2 | – | – | – | – | – | – | – | |||||||||
| RL12G05-2W2V | 14942402 | 0 10121 14178 0 | 1/2 | 2 | 6/230 | 20′ | – | 19 | 18 | 16 | 15 | 14 | 12 | 10 | 6 | 1-1/4″ FNPT | 231′ | 12 |
| 40′ | 19 | 18 | 16 | 15 | 14 | 13 | 11 | 7 | 2 | |||||||||
| 60′ | 18 | 17 | 16 | 14 | 13 | 11 | 7 | 3 | – | |||||||||
| RL12G05-3W2V* | 14942405 | 0 10121 14181 0 | 3 | 80′ | 17 | 16 | 15 | 13 | 11 | 8 | 3 | – | – | |||||
| 100′ | 16 | 15 | 13 | 11 | 8 | 4 | – | – | – | |||||||||
| 140′ | 14 | 12 | 9 | 5 | – | – | – | – | – | |||||||||
| 200′ | 7 | 2 | – | – | – | – | – | – | – | |||||||||
| RL12G07-2W2V | 14942403 | 0 10121 14179 7 | 3/4 | 2 | 8/230 | 20′ | – | 20 | 18 | 17 | 16 | 16 | 15 | 14 | 12 | 1-1/4″ FNPT | 291′ | 12 |
| 40′ | 20 | 19 | 17 | 17 | 16 | 15 | 14 | 13 | 11 | |||||||||
| 60′ | 19 | 18 | 17 | 16 | 15 | 14 | 13 | 11 | 9 | |||||||||
| RL12G07-3W2V* | 14942406 | 0 10121 14182 7 | 3 | 80′ | 18 | 17 | 16 | 15 | 14 | 13 | 11 | 9 | 6 | |||||
| 100′ | 17 | 16 | 15 | 14 | 13 | 12 | 9 | 6 | 3 | |||||||||
| 140′ | 15 | 15 | 14 | 13 | 10 | 7 | 4 | – | – | |||||||||
| 200′ | 13 | 11 | 8 | 5 | 1 | – | – | – | – | |||||||||
| 240′ | 9 | 6 | 2 | – | – | – | – | – | – | |||||||||
| RL12G10-2W2V | 14942404 | 0 10121 14180 3 | 1 | 2 | 10.4/230 | 20′ | – | – | 20 | 19 | 18 | 17 | 16 | 16 | 15 | 1-1/4″ FNPT | 399′ | 12 |
| 40′ | – | 20 | 19 | 18 | 17 | 16 | 16 | 15 | 14 | |||||||||
| 60′ | 20 | 19 | 18 | 17 | 17 | 16 | 15 | 14 | 13 | |||||||||
| 80′ | 19 | 18 | 17 | 17 | 16 | 15 | 14 | 13 | 12 | |||||||||
| 100′ | 18 | 17 | 17 | 16 | 15 | 14 | 13 | 12 | 11 | |||||||||
| 140′ | 17 | 16 | 16 | 15 | 14 | 13 | 12 | 10 | 8 | |||||||||
| RL12G10-3W2V* | 14942407 | 0 10121 14183 4 | 3 | 200′ | 15 | 14 | 13 | 11 | 11 | 9 | 7 | 5 | 2 | |||||
| 240′ | 14 | 12 | 11 | 10 | 8 | 6 | 3 | – | – | |||||||||
| 280′ | 12 | 10 | 8 | 6 | 4 | 1 | – | – | – | |||||||||
| 300′ | 10 | 9 | 7 | 4 | 1 | – | – | – | – | |||||||||
| 340′ | 7 | 5 | 2 | – | – | – | – | – | – | |||||||||
| 380′ | 3 | – | – | – | – | – | – | – | – | |||||||||
| RL12G15-3W2V | 14942408 | 0 10121 14184 1 | 1-1/2 | 3 | 11.5/230 | 20′ | – | – | – | 20 | 19 | 18 | 17 | 17 | 16 | 1-1/4″ | 545′ | 12 |
| Model | Item Number | UPC | HP | Wires | Amps/Volts | Depth to water | Discharge Pressure PSI | FNPT
Disc. |
Shut Off | Max Flow GPM | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | ||||||||||
| Gallons Per Minute | ||||||||||||||||||
| 40′ | – | – | 20 | 19 | 18 | 18 | 17 | 16 | 16 | |||||||||
| 60′ | – | 20 | 19 | 18 | 18 | 17 | 17 | 16 | 16 | |||||||||
| 80′ | 20 | 19 | 18 | 18 | 17 | 17 | 16 | 16 | 15 | |||||||||
| 100′ | 19 | 18 | 18 | 17 | 17 | 16 | 16 | 15 | 15 | |||||||||
| 140′ | 18 | 17 | 17 | 16 | 16 | 15 | 15 | 14 | 14 | |||||||||
| 200′ | 17 | 16 | 16 | 15 | 15 | 14 | 13 | 13 | 12 | |||||||||
| 240′ | 16 | 15 | 15 | 14 | 14 | 13 | 12 | 11 | 10 | |||||||||
| 280′ | 15 | 14 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | |||||||||
| 300′ | 14 | 14 | 13 | 12 | 12 | 10 | 9 | 8 | 6 | |||||||||
| 340′ | 13 | 13 | 12 | 11 | 10 | 8 | 7 | 5 | 3 | |||||||||
| 380′ | 12 | 11 | 10 | 9 | 7 | 5 | 3 | 1 | – | |||||||||
| 440′ | 9 | 8 | 6 | 4 | 2 | – | – | – | – | |||||||||
| 500′ | 5 | 3 | – | – | – | – | – | – | – | |||||||||
| RL22G10-3W2V* | 14942409 | 0 10121 14185 8 | 1 | 3 | 10.4/230 | 20′ | – | – | – | 31 | 28 | 26 | 23 | 19 | 11 | 221′ | 22 | |
|
1-1/4″ FNPT |
||||||||||||||||||
| 40′ | – | – | 32 | 28 | 26 | 24 | 20 | 12 | 1 | |||||||||
| 60′ | – | 33 | 29 | 16 | 24 | 20 | 14 | 3 | – | |||||||||
| 80′ | – | 29 | 27 | 24 | 21 | 15 | 4 | – | – | |||||||||
| 100′ | 30 | 27 | 25 | 22 | 16 | 6 | – | – | – | |||||||||
| 140′ | 25 | 23 | 18 | 9 | – | – | – | – | – | |||||||||
| 200′ | 13 | 2 | – | – | – | – | – | – | – | |||||||||
Includes control box.
Sub Pacs (includes factory spliced power cable, control center, pressure switch and gauge, pressure relief valve, and tank cross) are available atselect retail outlets in Canada.
Carton Specifications
| Model | Length | Width | Height | Weight (lbs) | Carton Cubes (cu ft) | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|
| RL12G05-2W1V | 4.5″ | 29″ | 4.5″ | 21 | 0.34 | 104 | 13 | 13 |
| RL12G05-2W2V | 4.5″ | 29″ | 4.5″ | 21 | 0.34 | 104 | 13 | 13 |
| RL12G07-2W2V | 4.5″ | 29″ | 4.5″ | 24 | 0.34 | 100 | 10 | 10 |
| RL12G10-2W2V | 4.375″ | 33″ | 4.5″ | 28 | 0.38 | 81 | 9 | 9 |
| RL12G05-3W2V | 4.5″ | 38″ | 5.5″ | 25 | 0.54 | 72 | 8 | 9 |
| RL12G07-3W2V | 4.5″ | 38″ | 5.5″ | 28 | 0.54 | 72 | 8 | 9 |
| RL12G10-3W2V | 4.5″ | 42.75″ | 5.5″ | 32 | 0.61 | 54 | 6 | 9 |
| RL12G15-3W2V | 4.375″ | 37.38″ | 4.5″ | 36 | 0.43 | 63 | 9 | 7 |
| RL22G10-3W2V | 4.5″ | 42.75″ | 5.5″ | 31 | 0.61 | 54 | 6 | 9 |
Control Boxes for 4″ Submersible Well Pumps – 2 Year Gold Warranty
| Model | Warranty | Item Number | UPC | HP | Volts | Length (in) | Width (in) | Height (in) | Wt. (lbs) | Carton Cubes (cu ft) | Master Pack Qty. | Pallet Quantity | Qty. per Layer | Layers per Pallet |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RLCB05-115 | 2yr Gold | 640188 | 0 10121 12203 1 | 1/2 | 115 | 8.75″ | 5.25″ | 3.25″ | 3 | 0.09 | 10 | 45 Master Packs | 9 Master Packs | 5 |
| RLCB05-230 | 640189 | 0 10121 12204 8 | 1/2 | 230 | 8.75″ | 5.35″ | 3.25″ | 3 | 0.09 | 10 | 45 Master Packs | 9 Master Packs | 5 | |
| RLCB07-230 | 640190 | 0 10121 13096 8 | 3/4 | 230 | 9.0″ | 5.25″ | 3.0″ | 3 | 0.08 | 10 | 45 Master Packs | 9 Master Packs | 5 | |
| RLCB10-230 | 640191 | 0 10121 13097 5 | 1 | 230 | 9.0″ | 5.5″ | 3.5″ | 3 | 0.1 | 10 | 45 Master Packs | 9 Master Packs | 5 | |
| RLCB15-230 | 640222 | 0 10121 13173 6 | 1-1/2 | 230 | 11.5″ | 8.25″ | 6.25″ | 6 | 0.34 | 10 | 45 Master Packs | 9 Master Packs | 5 |
For cable size information please see the technical data section.
