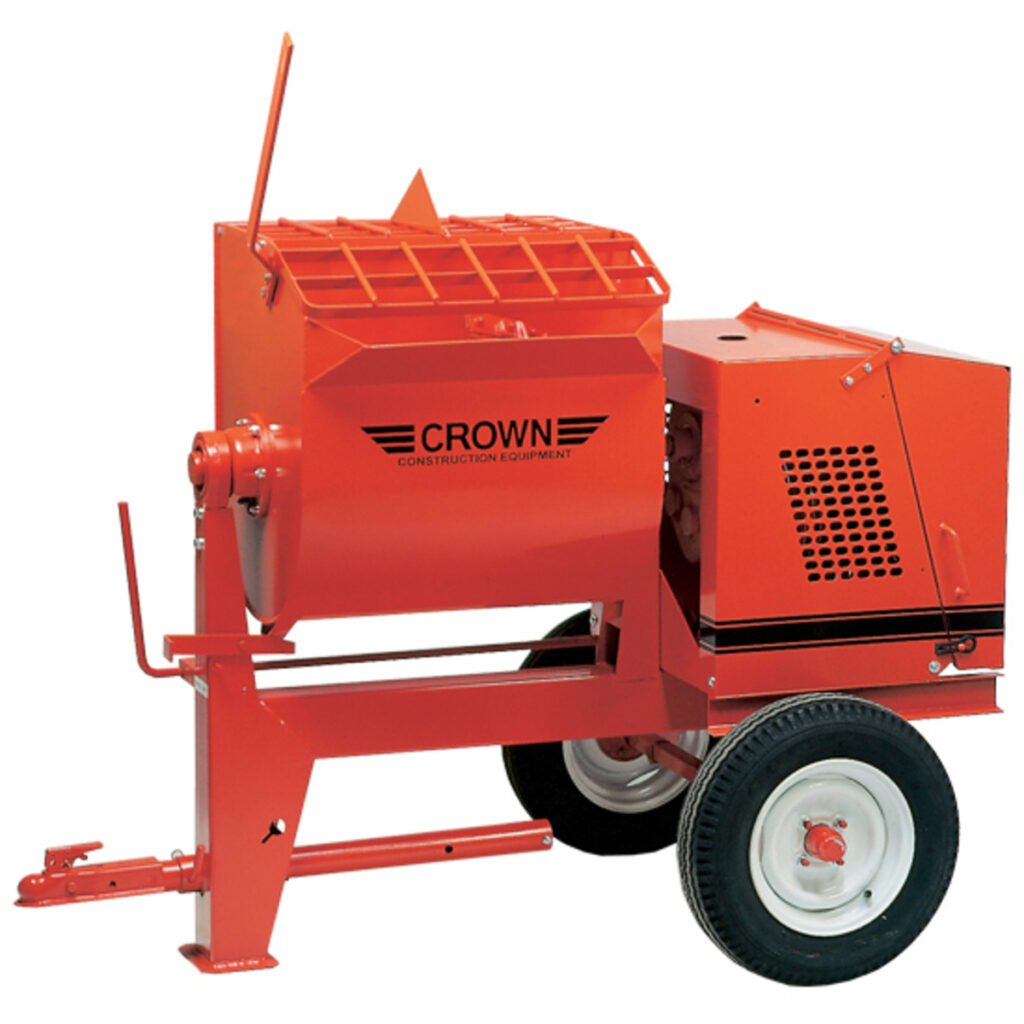

4S Mortar Mixer


Crown Mixer S4

Crown Equipment Mortar Mixer 4S

Call today to discuss you machine modifications requirements 800-575-1935

email us at  customerservice@kendisco.com

 1 1/2 Bag Capacity about 450 lbs mix weight – 4 cubic feet – Towable Option

 Crown Spiral Mixing Blade Upgrade

Crown’s inner and outer spiral blades work like two augers to provide mixing on both the inside and outside radius,  moving more material than traditional systems and providing increased air entrainment.





Click to rate this post!
[Total: 0 Average: 0]

Crown’s spiral mixing system works like a spiral conveyor rapidly moving material across the drum providing a faster, more thorough mixture.

  • 30% faster mix
  • Less splash – reduces cleanup and increases capacity
  • No contact with the drum – reduces drum wear
  • No rubber blades – reduces maintenance
  • Perfect fort color additives and dry mixes
  • Only available for steel drums mixers.
  • 1/2 up to 3 hp  Horsepower Baldor Electric Motor  1 Phase or  3 Phase
  • 5.5 Horsepower Honda GX160  Gasoline Engine – Larger motor or diesel available
  • Pintle Hitch or optional Ball Hitch
  •  All Crown mixers feature a lifetime warranty on the drum bearing and seals.
  • Your Own Power Source – Less Power

In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. This is because pintle mounts are notorious for their high weight capacity and simple layout. The basic pintle hitch follows a hook-and-loop design, with the hook mounted on the vehicle and the loop attached to the trailer. Because of their simplicity, pintle hitches are able to have thicker metal construction and more secure coupling

Cast Iron Machined Drive Gears

Capacity Bag1 – 1 1/2
Cubic Feet4
Overall Height43″
Overall Width28″
Charging Height46″
Overall Length (Tow pole In/Out)62″
Tires (Pneumatic)4.8 x 8
Spiral Blade OptionYes
Weight – Max lbs450

This is not a Highway towable mixer
