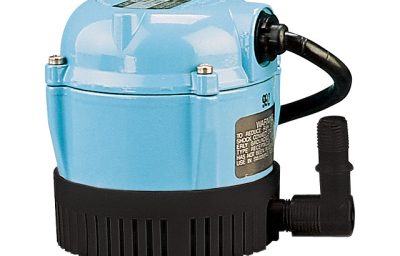

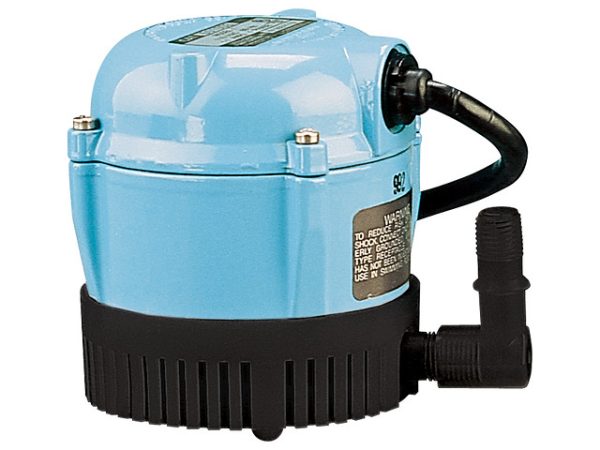

The 1-AA-18 is a small submersible oil-filled pump with epoxy-coated cast aluminum housing and is utilized for commercial, industrial and residential applications including statuary fountains, water displays, air conditioners, machine tool coolants, and other applications where liquid must be transferred or recirculated. This compact 170 GPH pump features a 1/4″ MNPT discharge, 7′ shut-off head capability, and screened inlet.
| Item: | 500500 |
| Model: | 1-AA-18 |
Ratings |
|
| HP | 1/200 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.1 A |
| Full Load Watts | 70 W |
| Volts | 115 VAC |
| Cord Length | 18 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 2.83 gpm / 170 gph |
| Shut-Off | 7 ft |
| Shut Off Height – 60Hz | 7 ft |
| Max PSIG – 60Hz | 3 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Pump Volute Material | Polypropylene |
| Impeller Material | Polypropylene |
| Intake Screen Material | Polypropylene |
| Seal Material | Nitrile Rubber |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 4.1 “ |
| Product Width | 3.7 “ |
| Product Height | 4.3 “ |
| Pump Length | 4.1 “ |
| Product Weight | 3.67 lb |
| Product Weight w/ Pack | 4.17 lb |
| Carton Length | 7.5 “ |
| Carton Width | 7 “ |
| Carton Height | 5.5 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
