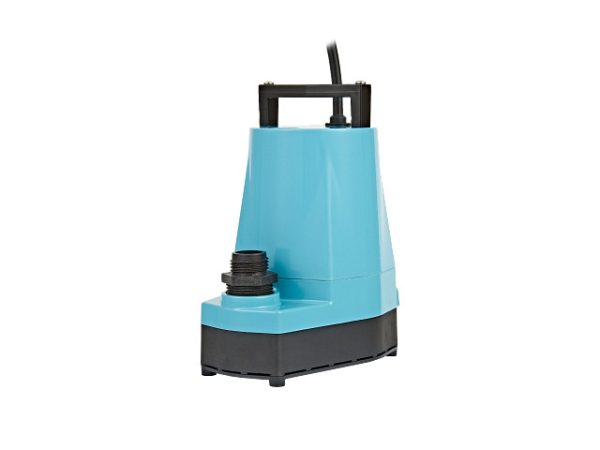

1/6 hp utiity pump, 115 V, 10′ cord, manual operation
| Item: | 505721 |
| Model: | 5-MSP |
1/6 hp utiity pump, 115 V, 10′ cord, manual operation
| Item: | 505721 |
| Model: | 5-MSP |
Ratings |
|
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 2 A |
| Amps – Starting | 3 A |
| Full Load Watts | 220 W |
| Volts | 127 VAC |
| Cord Length | 18 ft |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Protection [IP] | IP68 |
| Maximum Flow Rate – 60Hz | 25 gpm / 1500 gph |
| Minimum Flow Rate – 60Hz | 4.17 gpm / 250 gph |
| Shut-Off | 26 ft |
| Minimum Head – 60Hz | 1.31 ft |
| Shut Off Height – 60Hz | 26.3 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Manual |
| Motor Cooling | Water |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Aluminum |
| Pump Volute Material | Nylon |
| Impeller Type | Semi-open |
| Impeller Material | Nylon |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Nylon |
| Top Bearing Type | Sleeve |
| Bottom Bearing Type | Sleeve Bearing |
| Seal Material | Viton Retainer |
| Seal Type | Retainer |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1 “ |
| Product Length | 6.1 “ |
| Product Width | 4.13 “ |
| Product Height | 7.78 “ |
| Pump Length | 6.1 “ |
| Product Weight | 6.75 lb |
| Product Weight w/ Pack | 7.3 lb |
| Carton Length | 7.28 “ |
| Carton Width | 5.51 “ |
| Carton Height | 9.45 “ |
Other |
|
| Accessories Included | 3/4″ GHT garden hose adapter |
| Standard Warranty | 12 Months |
