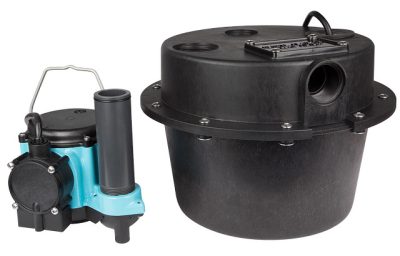

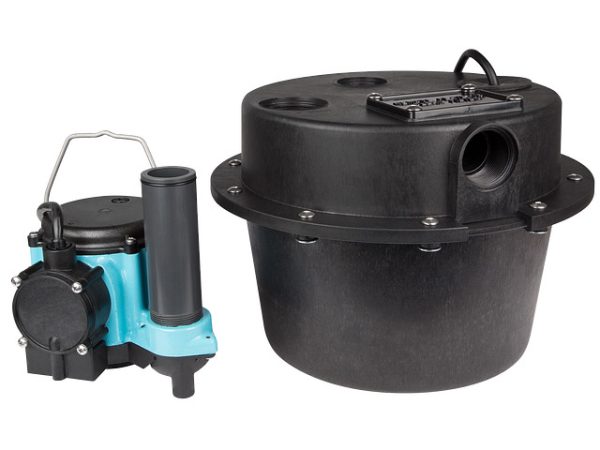

Little Giant WRSC-6 Sump Pump (506065)
Little Giant’s WRS Series, “Drainosaur” and WRSC Series “Drainosaur Jr.” sump pump system automatically removes water from laundry trays, lavatory sinks, wet bar sinks, dehumidifiers, water softeners and more. Includes 6-CIA-ML 1/3 HP pump, discharge pipe, a 5 or 3.5 gallon IAPMO approved basin with 1-1/2″ NPT inlet with easy to clean filter, 1-1/2″ NPT discharge and 2″ NPT vent.
| Item: | 506065 |
| Model: | WRSC-6 |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 9 A |
| Amps – Starting | 14.3 A |
| Full Load Watts | 720 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 46 gpm / 2760 gph |
| Rated Flow Rate – 60Hz | 46 gpm / 2760 gph |
| Shut-Off | 18 ft |
| Shut Off Height – 60Hz | 18 ft |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Integral Diaphragm |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 125 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Polypropylene |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | No |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Bronze |
| Top Bearing Type | Sleeve |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Suction Type | Screened |
| Product Length | 14.5 “ |
| Product Width | 14.5 “ |
| Product Height | 10.55 “ |
| Pump Length | 14.5 “ |
| Product Weight | 25 lb |
| Product Weight w/ Pack | 26 lb |
| Carton Length | 14.5 “ |
| Carton Width | 14.5 “ |
| Carton Height | 16.75 “ |
| Off Level – Range | 1″ – 3″ |
| On Level – Range | 4″ – 7″ |
Other |
|
| Accessories Included | two 1-1/2″ MNPT and 2″ slip adapters for inlet and discharge, one 2″ MNPT and one 1-1/2″ slip adapter for vent |
| Minimum Order Quantity | 1 |
| Accessories / Repair Kits | 108101, 928004, 106079, 106181, 909021, 901350101, 108482, 599026, 599025 |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
