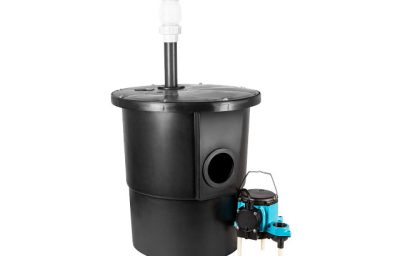

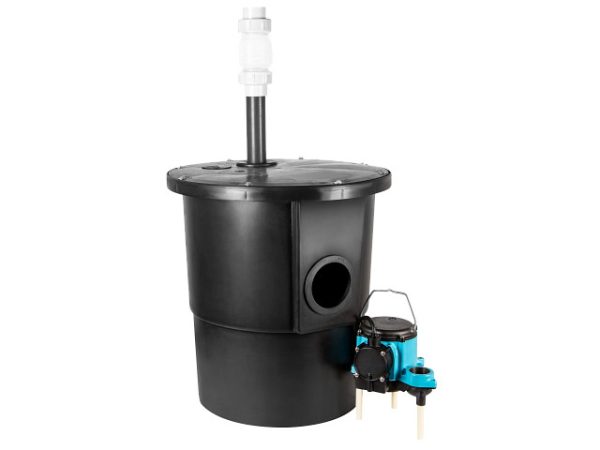

The SPK Series pump packages are ideally suited for basement sumps and flood control applications. The system with basin (18″ x 22″) includes 1/3 horsepower motor with diaphragm switch, 115 v, and 10-foot cord.
| Item: | 506081 |
| Model: | SPK-6CIA |
The SPK Series pump packages are ideally suited for basement sumps and flood control applications. The system with basin (18″ x 22″) includes 1/3 horsepower motor with diaphragm switch, 115 v, and 10-foot cord.
| Item: | 506081 |
| Model: | SPK-6CIA |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 9 A |
| Amps – Starting | 14.3 A |
| Full Load Watts | 720 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 46 gpm / 2760 gph |
| Max Flow Rate – 50Hz | 40 gpm / 2400 gph |
| Shut-Off | 18 ft |
| Shut Off Height – 60Hz | 18 ft |
| Max Solid Handling Size | 0.13 “ |
| Switch Type | Diaphragm Switch |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Polypropylene |
| Impeller Type | Non-Clog |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Check Valve | Yes |
| Intake Screen Material | Nylon |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Bronze |
| Top Bearing Type | Sleeve |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 20.5 “ |
| Product Width | 20.5 “ |
| Product Height | 22 “ |
| Pump Length | 9.5 “ |
| Product Weight | 30 lb |
| Product Weight w/ Pack | 30 lb |
| Carton Length | 21 “ |
| Carton Width | 21 “ |
| Carton Height | 23 “ |
| Off Level – Range | 4″ – 7″ |
| On Level – Range | 10″ – 13″ |
Other |
|
| Accessories Included | Little Giant 6-Series Sump pump, extension feet kit, 18″x22″ polypropylene basin, 4″ Adapt-A-Flex grommet, check valve, bolt-on polypropylene cover, NPT threaded 1-1/2″ discharge pipe. |
| Standard Warranty | 36 Months |
