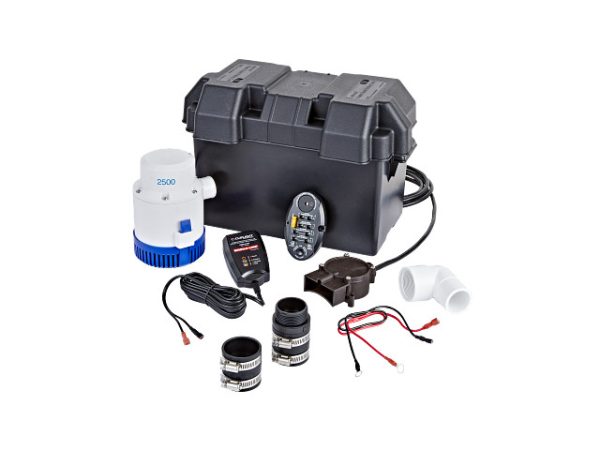

Add-on battery backup package system that allows a user to backup their existing sump pump and includes the 1 amp battery charger, 2500 GPH 12 volt backup pump, diaphragm switch pipe fittings for installation and battery box all in one package.
| Item: | 506404 |
| Model: | SPBS-1HF |
Ratings |
|
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 115 VAC |
| Lead Length | 6 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 42 gpm / 2520 gph |
| Max Flow Rate – 50Hz | 0 gpm / 0 gph |
| Shut-Off | 18 ft |
| Shut Off Height – 50Hz | 0 ft |
| Shut Off Height – 60Hz | 20 ft |
| Max Solid Handling Size | 0 “ |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Impeller Type | Semi-open |
| Impeller Material | Nylon |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Nylon |
| Seal Material | Viton Retainer |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Barb |
| Discharge | 1.5 “ |
| Pump Length | 5.5 “ |
| Product Weight w/ Pack | 13.15 lb |
| Carton Length | 15.06 “ |
| Carton Width | 15.06 “ |
| Carton Height | 13.38 “ |
Other |
|
| Electrical Agency Approvals | UL |
| Standard Warranty | 24 Months |
