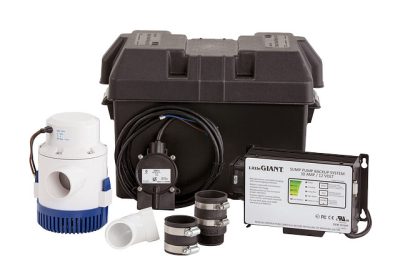

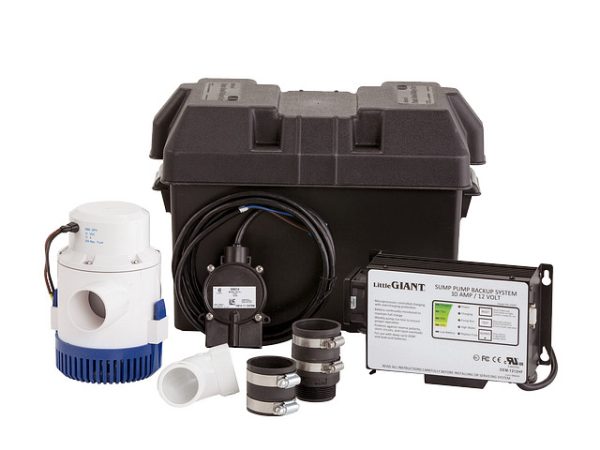

Add-on battery backup package system that allows a user to backup their existing sump pump and includes the 10 amp battery charger, 2500 GPH 12 volt backup pump, diaphragm switch pipe fittings for installation and battery box all in one package.
| Item: | 506406 |
| Model: | SPBS-10HF |
Ratings |
|
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Volts | 12 VDC |
| Lead Length | 6 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 42 gpm / 2520 gph |
| Shut-Off | 20 ft |
| Shut Off Height – 60Hz | 20 ft |
| Max Solid Handling Size | 0 “ |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Impeller Type | Semi-open |
| Impeller Material | Nylon |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Nylon |
| Seal Material | Viton Retainer |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Barb |
| Discharge | 1.5 “ |
| Product Length | 9.75 “ |
| Product Width | 16.5 “ |
| Product Height | 11 “ |
| Pump Length | 9.75 “ |
| Product Weight | 15.5 lb |
| Product Weight w/ Pack | 16 lb |
| Carton Length | 15.17 “ |
| Carton Width | 15.17 “ |
| Carton Height | 13.38 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | UL |
| Standard Warranty | 36 Months |
