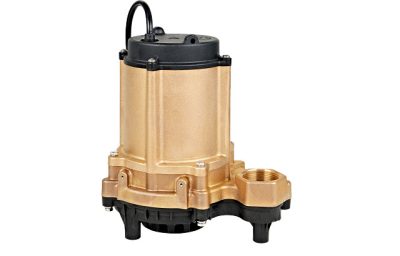

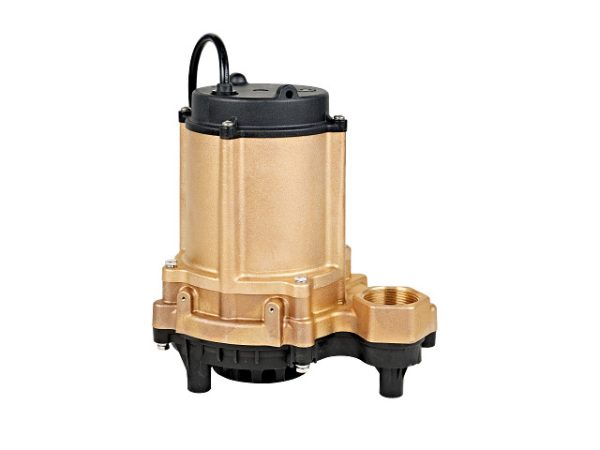

Little Giant’s 6EC Series submersible sump and effluent pump for basement, dewatering, light effluent and water transfer applications. Equipped with a permanent split capacitor (PSC) motor with thermal overload protection.
| Item: | 506812 |
| Model: | 6EC-CBM |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Starting | 14.5 A |
| Full Load Watts | 600 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Motor Type | PSC |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 53 gpm / 3180 gph |
| Shut-Off | 28 ft |
| Shut Off Height – 60Hz | 28 ft |
| Max Solid Handling Size | 0.5 “ |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Polypropylene |
| Pump Body Material | Cast Bronze |
| Impeller Type | Semi-open |
| Impeller Material | Nylon |
| Intake Screen Material | Polypropylene |
| Fasteners Material | Stainless Steel |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 8.7 “ |
| Product Width | 8.5 “ |
| Product Height | 10.2 “ |
| Pump Length | 8.7 “ |
| Product Weight | 26.9 lb |
| Product Weight w/ Pack | 26 lb |
| Carton Length | 9.4 “ |
| Carton Width | 10.8 “ |
| Carton Height | 13.6 “ |
| Off Level – Range | Not Applicable |
| On Level – Range | Not Applicable |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 36 Months |
