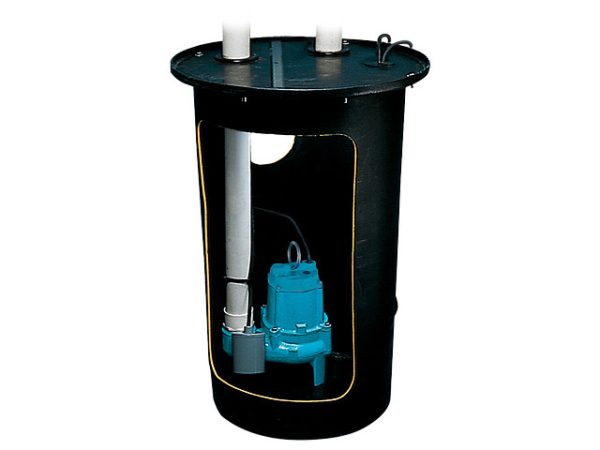

4/10 HP Simplex package for the collection of sewage, effluent, drainage or seepage water from residential, light industrial, commercial or agricultural. Features cast iron pump housings with protective epoxy coating for corrosion and rust resistance and oil-filled motor housings for lifetime lubrication and rapid heat. dissipation. It also has a flow rate of 80 GPM at 5′.
| Item: | 509073 |
| Model: | 9S-SMPXRT-K |
Ratings |
|
| HP | 0.4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 8 A |
| Amps – Starting | 20.15 A |
| Full Load Watts | 870 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 100 gpm / 6000 gph |
| Shut-Off | 20 ft |
| Shut Off Height – 50Hz | 60 ft |
| Shut Off Height – 60Hz | 60 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 135 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 22.5 “ |
| Product Width | 41 “ |
| Product Height | 22.5 “ |
| Pump Length | 10.4 “ |
| Product Weight | 63 lb |
| Product Weight w/ Pack | 63 lb |
| Carton Length | 22.5 “ |
| Carton Width | 22.5 “ |
| Carton Height | 41 “ |
| Off Level – Range | Adjustable |
| On Level – Range | Adjustable |
Other |
|
| Accessories Included | Pre-Assembled: 18″x30″ Roll Top Poly Basin (Item 113056) with 4″ Adaptaflex and Multi-tite Grommet, 1-Piece Structural Foam Slip-Fit Flange Cover (Item 113057) with 2 or 3″ vent and 2″ discharge, 9SC-CIM Sewage Pump (Item 509413) 115V 4/10HP, piggyback mechanical float switch and 2″ Check valve (Item 940022). |
| Minimum Order Quantity | 1 |
| Pump Component Part Number | 509413 |
| Standard Warranty | 36 Months |
