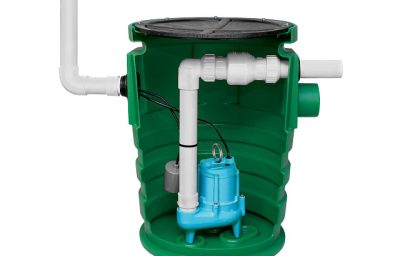

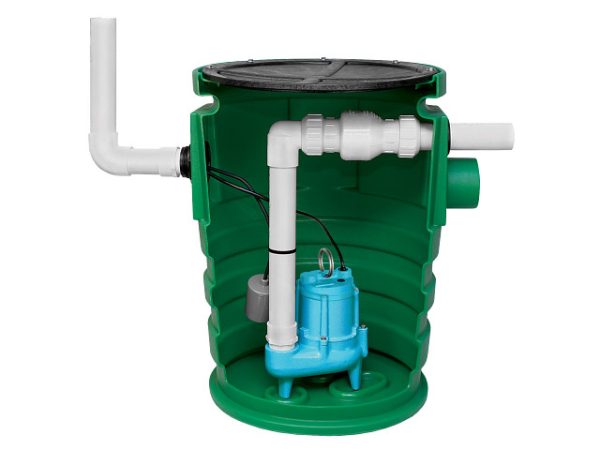

The WCR-9S wastewater system is designed for collection and removal of water run-off from low-lying problem areas. Discharge and electrical connections are made through the side of basin, allowing top of basin to be flush with ground level. No digging is required for servicing the system. Unit is equipped with schedule 40 PVC discharge piping with a pre-drilled air-bleed hole and a full-flow check valve with stainless steel clamp bands.
| Item: | 509082 |
| Model: | WCR-9SS |
Ratings |
|
| HP | 0.4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 8 A |
| Amps – Starting | 20.15 A |
| Full Load Watts | 870 W |
| Volts | 115 VAC |
| Cord Length | 20 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 100 gpm / 6000 gph |
| Shut-Off | 20 ft |
| Shut Off Height – 60Hz | 30 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Piggyback Mechanical Float |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Nylon |
| Motor Shaft End – Material | 420 Stainless Steel |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Product Length | 22 “ |
| Product Width | 22 “ |
| Product Height | 30 “ |
| Pump Length | 22 “ |
| Product Weight | 69 lb |
| Product Weight w/ Pack | 69 lb |
| Carton Length | 22 “ |
| Carton Width | 22 “ |
| Carton Height | 30 “ |
| Off Level – Range | 2″ – 6″ |
| On Level – Range | 9″ – 14″ |
Other |
|
| Accessories Included | Pre-Packaged (Assembly Required: 20″x30″ Polyethylene Basin with stub out intake, 1 Piece Steel Bolt-on Cover, 2″ discharge, with 9SC-CIA-RF Sewage Pump (Item 509412) 115V 4/10HP, piggyback mechanical float switch and 2″ Check valve (Item 940022). |
| Pump Component Part Number | 509412 |
| Standard Warranty | 36 Months |
