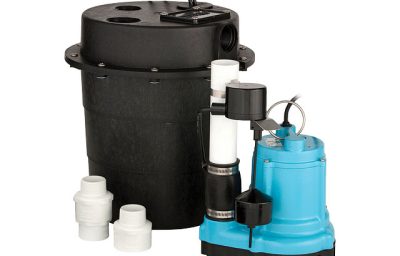

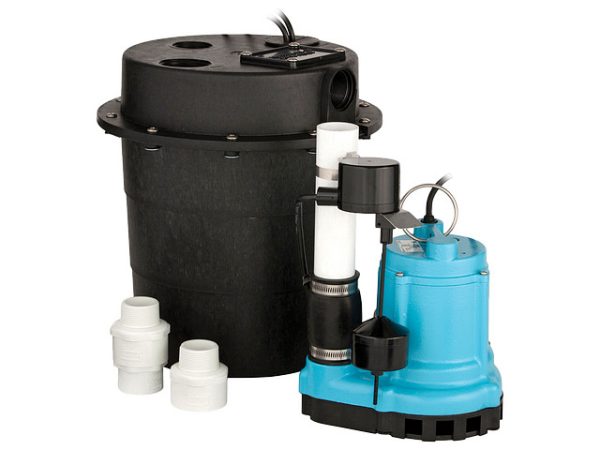

Featuring the Drainosaur and Drainosaur Jr, the WRS Series pumps offer compact drainage solutions for under sinks, laundry trays, basement bars and more.
| Item: | 509268 |
| Model: | WRS-9 |
Featuring the Drainosaur and Drainosaur Jr, the WRS Series pumps offer compact drainage solutions for under sinks, laundry trays, basement bars and more.
| Item: | 509268 |
| Model: | WRS-9 |
Ratings |
|
| HP | 0.4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 7.5 A |
| Amps – Starting | 14.5 A |
| Full Load Watts | 800 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 80 gpm / 4800 gph |
| Shut-Off | 32 ft |
| Shut Off Height – 60Hz | 32 ft |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Piggyback Vertical Mechanical |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 125 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Thermoplastic Elastomer |
| Motor Shaft End – Material | SAE 1040/45 Carbon Steel |
| Intake Screen Material | Cast Iron Epoxi |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 10.63 “ |
| Product Width | 10.63 “ |
| Product Height | 16.17 “ |
| Pump Length | 9.6 “ |
| Product Weight | 35 lb |
| Product Weight w/ Pack | 38.4 lb |
| Carton Length | 14.75 “ |
| Carton Width | 14.75 “ |
| Carton Height | 17.25 “ |
| Off Level – Range | 2″ – 5″ |
| On Level – Range | 7″ – 10″ |
Other |
|
| Accessories Included | Pre-assembled 5 gallon basin and cover with removable filter, o-rings for watertight seal. |
| Standard Warranty | 36 Months |
