Built to handle higher-head flow in residential wastewater removal, dewatering and water transfer applications, the 9ECH Series is a homeowner’s trusted companion. Constructed of heavy cast iron with an epoxy coated finish and stainless steel fasteners, the 9ECH Series will provide years of reliability.

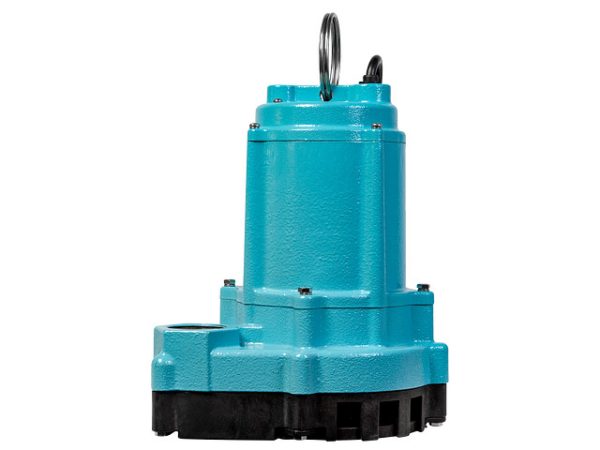

| Item: | 509533 |
| Model: | 9ECH-CIM |
Ratings |
|
| HP | 0.4 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 7 A |
| Amps – Starting | 14.5 A |
| Full Load Watts | 830 W |
| Volts | 115 VAC |
| Cord Length | 30 ft |
| Pump Power Cord Type | SJTW |
| Pump Power Cord Gauge | 18-3 |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Flow Rate – 60Hz | 70 gpm / 4200 gph |
| Minimum Flow Rate – 60Hz | 5 gpm / 300 gph |
| Shut-Off | 45 ft |
| Minimum Head – 60Hz | 5 ft |
| Shut Off Height – 60Hz | 45 ft |
| Stages | 1 |
| Max Solid Handling Size | 0.75 “ |
| Switch Type | Manual |
| Motor Cooling | Oil |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Pump Volute Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Thermoplastic Elastomer |
| Motor Shaft End – Material | SAE 1040/45 Carbon Steel |
| Check Valve | No |
| Intake Screen Material | Cast Iron Epoxi |
| Fasteners Material | Stainless Steel |
| Top Bearing Material | Steel |
| Top Bearing Type | Ball |
| Bottom Bearing Material | Steel |
| Bottom Bearing Type | Ball Bearing |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Product Length | 8.9 “ |
| Product Width | 8.4 “ |
| Product Height | 10.9 “ |
| Pump Length | 8.9 “ |
| Product Weight | 38 lb |
| Product Weight w/ Pack | 37.4 lb |
| Carton Length | 11.42 “ |
| Carton Width | 9.84 “ |
| Carton Height | 13.78 “ |
Other |
|
| Accessories Included | None |
| Electrical Agency Approvals | CSA |
| Standard Warranty | 12 Months |
