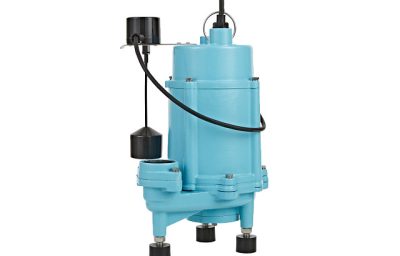

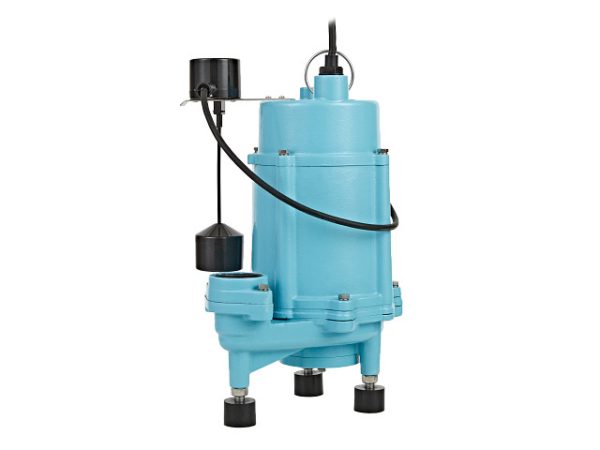

1HP Automatic Grinder with vertical float, 230V, 1PH, 20′ Cord
| Item: | 509814 |
| Model: | 16G-V231-20 |
1HP Automatic Grinder with vertical float, 230V, 1PH, 20′ Cord
| Item: | 509814 |
| Model: | 16G-V231-20 |
Ratings |
|
| HP | 1 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Full Load | 6.5 A |
| Amps – Starting | 32.5 A |
| Volts | 230 VAC |
| Cord Length | 20 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 52 gpm / 3120 gph |
| Minimum Flow Rate – 60Hz | 9 gpm / 540 gph |
| Shut-Off | 51 ft |
| Minimum Head – 60Hz | 0 ft |
| Shut Off Height – 60Hz | 53 ft |
| Motor Cooling | Fully Submerged |
Liquid |
|
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Vortex |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Stainless Steel |
| Seal Material | Silicon Carbide / Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 2 “ |
| Pump Length | 11.4 “ |
| Product Weight | 78 lb |
| Product Weight w/ Pack | 86 lb |
| Carton Length | 13.6 “ |
| Carton Width | 13 “ |
| Carton Height | 19.9 “ |
Other |
|
| Electrical Agency Approvals | cULus |
| Standard Warranty | 36 Months |
