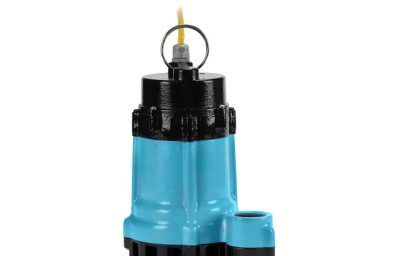

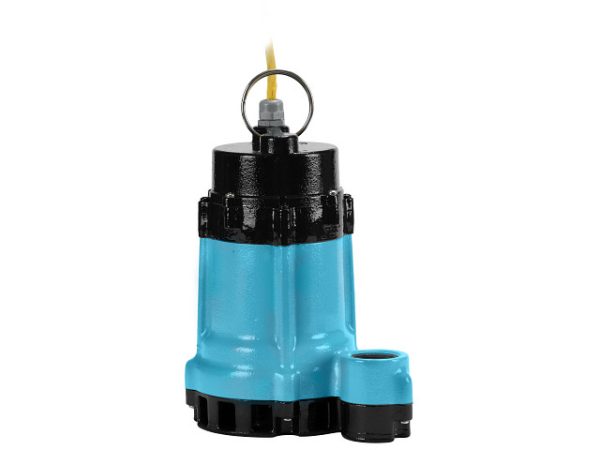

511610 – HT-10EN-CIM

This Little Giant HT-10E series High Temperature Sump/Effluent pump is specifically engineered to handle the tough, demanding tasks of wastewater and effluent waste transfer with high efficiency and long term dependability. Ideal for use in residential, commercial, industrial, and agricultural applications with light to medium transfer demands such as dewatering, effluent waste, wastewater, and handling where such materials must be moved upward from a collection area to sewer lines, septic lines, or drainage areas.



Item: 511610
Model: HT-10EN-CIM



Ratings
HP 1/2 hp
Frequency 60 Hz
Phase Single-Phase
Amps – Full Load 10.5 A
Amps – Starting 21 A
Full Load Watts 900 W
Volts 115 VAC
Cord Length 15 ft
Pump Power Cord Type SJOOW
Pump Power Cord Gauge 16-3
Motor Type Submersible
Continuous Duty Yes
Thermal Overload Protection Yes
Maximum Flow Rate – 60Hz 75 gpm / 4500 gph
Shut-Off 30 ft
Shut Off Height – 60Hz 30 ft
Max Solid Handling Size 0.75 “
Switch Type Manual
Motor Cooling Oil

Liquid
Max Fluid Temperature 200 °F

Materials of Construction
Pump Base Material Cast Iron
Pump Body Material Cast Iron
Pump Volute Material Cast Iron
Impeller Type Non-Clog
Impeller Material Nylon
Motor Shaft End – Material SAE 1040/45 Carbon Steel
Intake Screen Material Cast Iron Epoxi
Fasteners Material Stainless Steel
Top Bearing Material Iron and Copper
Top Bearing Type Sleeve
Bottom Bearing Material Steel
Bottom Bearing Type Ball Bearing
Seal Material Carbon / Ceramic / Viton
Seal Type Mechanical Seal

Installation
Discharge Type Threaded – FNPT
Discharge 1.5 “
Product Length 9.54 “
Product Width 6.73 “
Product Height 11.16 “
Pump Length 11.16 “
Product Weight 39 lb
Product Weight w/ Pack 36.95 lb
Carton Length 9.81 “
Carton Width 12.56 “
Carton Height 14.44 “

Other
Accessories Included None
Electrical Agency Approvals CSA
Standard Warranty 36 Months
