| Item: | 514730 |

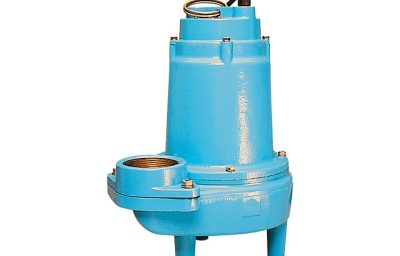

| Model: | 16S-CIM |
| Item: | 514730 |
| Model: | 16S-CIM |
Ratings |
|
| HP | 1 hp |
| Frequency | 50Hz/60Hz |
| Phase | Three-Phase |
| Amps – Full Load | 3 A |
| Amps – Starting | 9 A |
| Full Load Watts | 850 W |
| Volts | 380 VAC / 460 VAC |
| Cord Length | 20 ft |
| Motor Type | Submersible |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 178 gpm / 10680 gph |
| Shut-Off | 35 ft |
| Shut Off Height – 60Hz | 35 ft |
| Max Solid Handling Size | 2 “ |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Pump Base Material | Cast Iron |
| Pump Body Material | Cast Iron |
| Impeller Type | Non-Clog |
| Impeller Material | Cast Iron |
| Motor Shaft End – Material | 420 Stainless Steel |
| Intake Screen Material | Not Applicable |
| Seal Material | Carbon/Ceramic, Nitrile |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 3 “ |
| Product Length | 14.1 “ |
| Product Width | 9.9 “ |
| Pump Length | 14.07 “ |
| Product Weight | 89 lb |
| Product Weight w/ Pack | 90 lb |
| Carton Length | 14.5 “ |
| Carton Width | 10.13 “ |
| Carton Height | 21 “ |
Other |
|
| Electrical Agency Approvals | CSA |
| Standard Warranty | 36 Months |
