Franklin Electric IGP-SMPX2460 Grinder Pump, 2 HP, 230V (515204)
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders

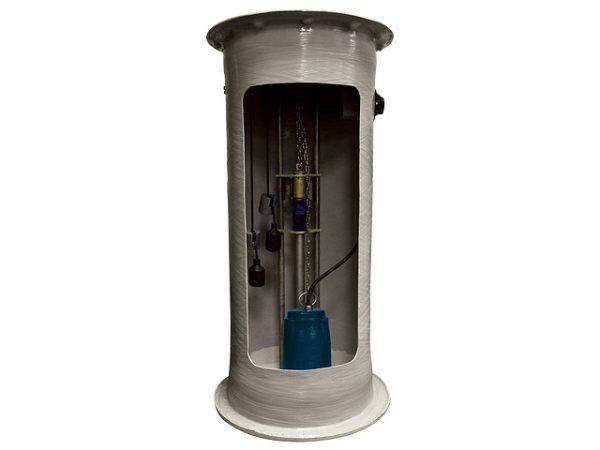

IGP-SMPX2460, 24X60 BASIN, 2HP GRINDER PUMP
| Item: | 515204 |
| Model: | IGP-SMPX2460 |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Amps – Full Load | 13.9 A |
| Volts | 230 VAC |
| Lead Length | 15 ft |
| Continuous Duty | Yes |
| Motor Insulation Classification | F |
| Maximum Flow Rate – 60 Hz | 33 gpm |
| Minimum Flow Rate – 60 Hz | 9 gpm |
| Shut Off | 120 ft |
| Minimum Head – 60 Hz | 0 ft |
| Shut Off 60 Hz | 130 ft |
| Motor Cooling | Fully Submerged |
| Discharge | 1.25″ |
| Pump rpm – 60 Hz | 3450 |
Liquid |
|
| Maximum Fluid Temperature | 104 °F |
Materials of Construction |
|
| Impeller | Vortex |
| Impeller Material | Brass |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Stainless Steel |
| Seal Material | Carbon Ceramic |
| Seal | Mechanical Seal |
| Basin Cover Material | Structural Foam |
| Basin Cover Style | 1-piece |
| Basin Cover | Solid |
| Basin Diameter | 24 “ |
| Basin Inlet Hub | 4” Adaptaflex & Multi-tite Grommet |
| Basin Material | Fiberglass |
| Basin Package Assembly Level | Pre-packaged (assembly required) |
| Basin Pump Quantity | 1 |
| Basin Vent Diameter | 2″ |
| Motor Fill Solution | Oil (white oil) |
| Rotating Cutter Material | AISI 440C Rockwell 55-60C |
| Volute / Side Inlet Material | Cast Iron |
| Stationary Cutter Material | AISI 440C Rockwell 55-60C |
Dimensions |
|
| Discharge | Threaded – NPT |
| Discharge Diameter | 1.25 “ |
| Impeller Diameter | 6.25 “ |
| Pump Length | 11.4 “ |
| Product Weight | 264 lb |
| Product Weight with Pack | 304 lb |
| Carton Length | 42 “ |
| Carton Width | 42 “ |
| Carton Height | 65 “ |
| Basin Height | 60 “ |
| Pump Height | 16.1 “ |
| Pump Width | 9.6 “ |
| Shaft Diameter | 1.13 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 24 Months |
| Applications | FPS Grinder Packages are ideal for residential and light commercial sewage waste transfer |
Send us your model number and we will confirm fit, price, and availability.
