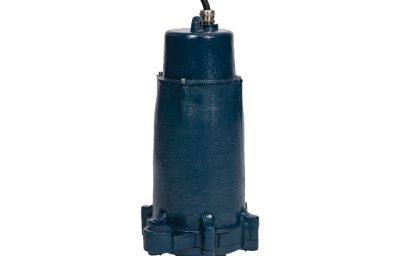

Franklin Electric IGPH-A231-30 Grinder Pump, 2 HP, 230V (515716)
Supplying Water Pump Parts Since 1991
Shipping Across the U.S. & Canada
Same-Day Shipping on Eligible Orders
FPS IGP Series grinder pumps are ideal for residential and light commercial sewage waste transfer where high head conditions exist
| Item: | 515716 |
| Model: | IGPH-A231-30 |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phases | Single-Phase |
| Amps – Full Load | 18.5 A |
| Volts | 230 VAC |
| Lead Length | 30 ft |
| Continuous Duty | Yes |
| Motor Insulation Classification | F |
| Maximum Flow Rate – 60 Hz | 40 gpm |
| Minimum Flow Rate – 60 Hz | 9 gpm |
| Shut Off | 180 ft |
| Minimum Head – 60 Hz | 10 ft |
| Shut Off 60 Hz | 200 ft |
| Motor Cooling | Fully Submerged |
| Pump rpm – 60 Hz | 3450 |
Liquid |
|
| Maximum Fluid Temperature | 104 °F |
Materials of Construction |
|
| Impeller | Vortex |
| Impeller Material | Brass |
| Motor Shaft End – Material | Stainless Steel |
| Intake Screen Material | Stainless Steel |
| Seal Material | Carbon Ceramic |
| Seal | Mechanical Seal |
| Motor Fill Solution | Oil (white oil) |
| Rotating Cutter Material | AISI 440C Rockwell 55-60C |
| Volute / Side Inlet Material | Cast Iron |
| Stationary Cutter Material | AISI 440C Rockwell 55-60C |
Dimensions |
|
| Discharge | Threaded – FNPT |
| Discharge Diameter | 1.25 “ |
| Impeller Diameter | 5.55 “ |
| Pump Length | 10.9 “ |
| Product Weight | 109 lb |
| Product Weight with Pack | 114 lb |
| Carton Length | 14 “ |
| Carton Width | 11 “ |
| Carton Height | 23 “ |
| Pump Height | 18.8 “ |
| Pump Width | 9.6 “ |
| Shaft Diameter | 1.13 “ |
Other |
|
| Electrical Agency Approvals | cCSAus |
| Warranty Standard Time | 24 Months |
| Applications | Residential and light commercial sewage waste transfer where higher head conditions exist. |
Send us your model number and we will confirm fit, price, and availability.
