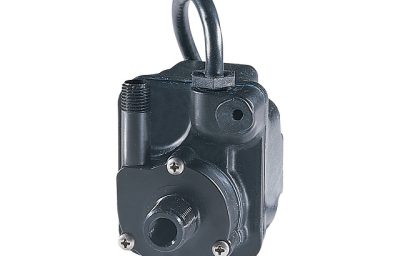

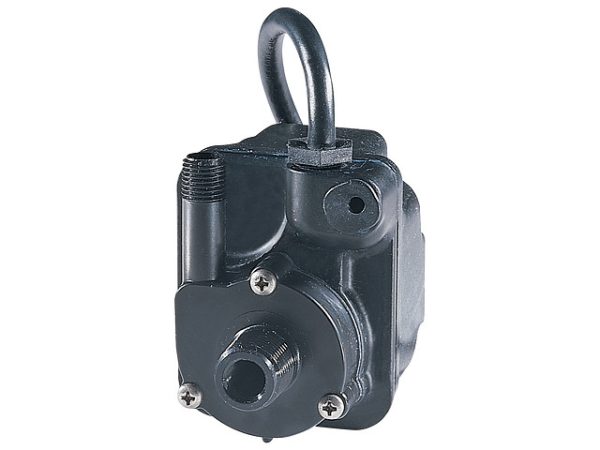

The Little Giant 1-EA-42 is dual purpose epoxy encapsulated pump that may be used totally submersed or in-line (fed with pipe of hose). For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants and many other applications where liquid must be transferred of recirculated. This compact 170 GPH pump features a 1/4″ MNPT discharge and 7′ shut-off head capability.
| Item: | 518087 |
| Model: | 1-EA-42 |
Ratings |
|
| HP | 1/125 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.6 A |
| Full Load Watts | 36 W |
| Volts | 115 VAC |
| Cord Length | 10 ft |
| Maximum Flow Rate – 60Hz | 2.83 gpm / 170 gph |
| Shut-Off | 7 ft |
| Max PSIG – 60Hz | 3 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Discharge Head Material | Thermoplastic |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction | 0.75 “ |
| Suction Type | Threaded – NPT |
| Product Length | 3.8 “ |
| Product Width | 2.8 “ |
| Product Height | 3.4 “ |
| Pump Length | 3.8 “ |
| Product Weight | 2.9 lb |
| Product Weight w/ Pack | 3.17 lb |
| Carton Length | 6.19 “ |
| Carton Width | 6.19 “ |
| Carton Height | 4.19 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSAus |
| Standard Warranty | 12 Months |
