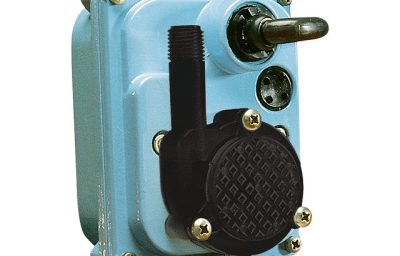

521204 – 1-MA
Our Little Giant pumps are designed for continuous circulation of statuary fountains. Made with some of the industry’s most durable materials, our pumps reach peak performance when completely submerged.
| Item: | 521204 |
| Model: | 1-MA |
Ratings |
|
| HP | 1/200 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.1 A |
| Full Load Watts | 70 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 2.83 gpm / 170 gph |
| Minimum Flow Rate – 60Hz | 0.83 gpm / 50 gph |
| Shut-Off | 7 ft |
| Minimum Head – 60Hz | 0.7 ft |
| Shut Off Height – 60Hz | 7 ft |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Aluminum |
| Discharge Head Material | Thermoplastic |
| Pump Volute Material | Polypropylene |
| Intake Screen Material | Polypropylene |
| Seal Material | Nitrile Rubber |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.25 “ |
| Suction Type | Screened |
| Product Length | 3.47 “ |
| Product Width | 3.31 “ |
| Product Height | 4.25 “ |
| Pump Length | 3.47 “ |
| Product Weight | 2.67 lb |
| Product Weight w/ Pack | 3.17 lb |
| Carton Length | 6.5 “ |
| Carton Width | 4.5 “ |
| Carton Height | 6.5 “ |
Other |
|
| Standard Warranty | 12 Months |
