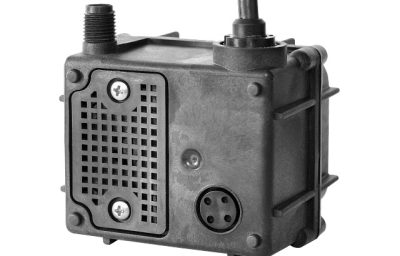

Small submersible oil filled pump with corrosion resistant nylon housing. For commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 120 GPH pump features a 1/4″ MNPT discharge, 4.6′ shut-off head capability, and screened inlet.
| Item: | 523375 |
| Model: | P-AAA (15-Ft.) |
Ratings |
|
| HP | 1/160 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 0.5 A |
| Full Load Watts | 30 W |
| Volts | 115 VAC |
| Cord Length | 15 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 2 gpm / 120 gph |
| Minimum Flow Rate – 60Hz | 0.17 gpm / 10 gph |
| Shut-Off | 4.6 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 4.6 ft |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | Glass Filled Thermoplastic |
| Intake Screen Material | Thermoplastic |
| Seal Material | Nitrile Rubber |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.25 “ |
| Suction Type | Screened |
| Product Length | 3 “ |
| Product Width | 3.75 “ |
| Product Height | 3.74 “ |
| Pump Length | 3 “ |
| Product Weight | 3 lb |
| Product Weight w/ Pack | 3.5 lb |
| Carton Length | 6.19 “ |
| Carton Width | 6.19 “ |
| Carton Height | 4.19 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Standard Warranty | 12 Months |
