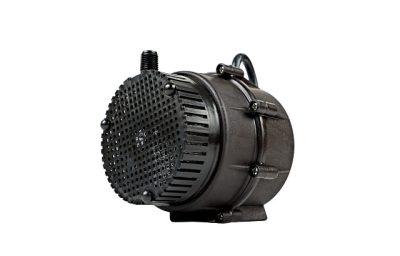

Small submersible oil-filled pump with corrosion resistant nylon housing. Perfect solution for commercial, industrial and home applications including statuary fountains, water displays, air conditioners, machine tool coolants, and many other applications where liquid must be transferred or recirculated. This compact 325 GPH pump features a 1/4″ MNPT discharge, 12.3′ shut-off head capability, and screened inlet.
| Item: | 527003 |
| Model: | NK-2 |
Ratings |
|
| HP | 1/40 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.1 A |
| Full Load Watts | 100 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 5.42 gpm / 325 gph |
| Shut-Off | 12.3 ft |
| Shut Off Height – 60Hz | 12.3 ft |
| Max PSIG – 60Hz | 4.4 PSI |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Pump Volute Material | Nylon |
| Impeller Material | Nylon |
| Discharge Material | Thermoplastic |
| Intake Screen Material | Polypropylene |
| Seal Material | FKM |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 0.5 “ |
| Suction Type | Screened |
| Product Length | 5 “ |
| Product Width | 5 “ |
| Product Height | 4.6 “ |
| Pump Length | 5 “ |
| Product Weight | 4.5 lb |
| Product Weight w/ Pack | 4.5 lb |
| Carton Length | 7.25 “ |
| Carton Width | 6.63 “ |
| Carton Height | 5 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
