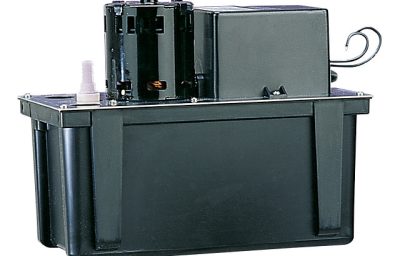

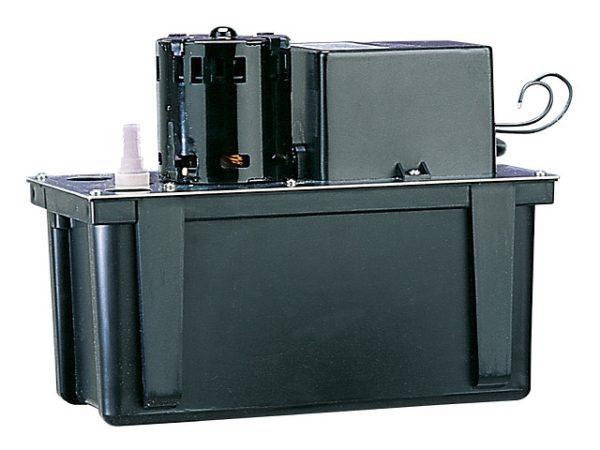

The 3.3 GPM Thermoplastic Condensate Removal Pump with 1-gallon tank and safety switch is capable of pumping up to 200 GPH @ 1′, 170 GPH @9′ (Off @ 14′). Ideal For Air Conditioning, Refrigeration and Dehumidification Applications, the VCL-14ULS can also be utilized for high-efficiency oil and gas-fired condensing furnaces/boiler equipment.
| Item: | 553101 |
| Model: | VCL-14ULS |
Ratings |
|
| HP | 1/50 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1 A |
| Full Load Watts | 78 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 3.33 gpm / 200 gph |
| Max PSIG | 6.1 PSI |
| Shut-Off | 14 ft |
| Safety Switch | Yes |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Check Valve | Yes |
Installation |
|
| Discharge | 0.38 “ |
| Product Length | 12.1 “ |
| Product Width | 6 “ |
| Product Height | 9.46 “ |
| Pump Length | 12.1 “ |
| Product Weight | 6.8 lb |
| Product Weight w/ Pack | 7.3 lb |
| Carton Length | 12.88 “ |
| Carton Width | 6.5 “ |
| Carton Height | 11 “ |
| Tubing Included | No |
Other |
|
| Minimum Order Quantity | 1 |
| Accessories / Repair Kits |
|
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
