Little Giant’s HT-VCL Series are high-temperature condensate pumps with a low-profile design rated for up to 212 degrees Fahrenheit. Designed for use in plenum applications, these pumps are ideal for steam humidifiers and boiler applications while boasting a higher flow rating and increased shut-off versus competitive products.

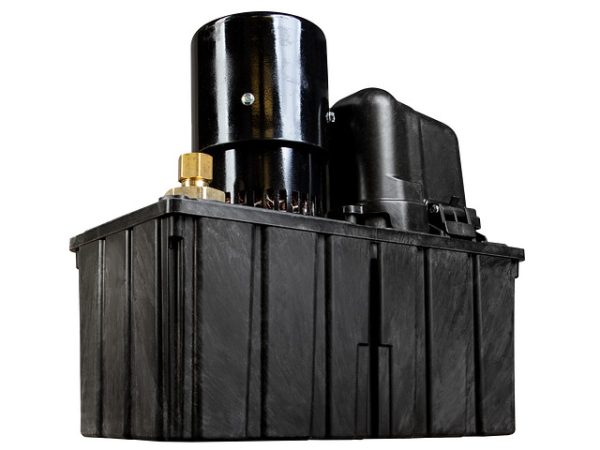

| Item: | 553160104 |
| Model: | HT-VCL-60-P |
Ratings |
|
| HP | 1/3 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.8 A |
| Full Load Watts | 300 W |
| Volts | 380 VAC / 460 VAC |
| Cord Length | 14 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 575 gpm / 34500 gph |
| Max PSIG | 26.9 PSI |
| Max Flow Rate – 50Hz | 9.58 gpm / 575 gph |
| Shut-Off | 62 ft |
| Maximum Suction Lift | 18.9 Meters |
| Max Solid Handling Size | 0 “ |
| Safety Switch | Yes |
| Tank Capacity | 1 gal |
Liquid |
|
| Max Fluid Temperature | 212 °F |
Materials of Construction |
|
| Pump Base Material | Polypropylene |
| Pump Body Material | Polypropylene |
| Impeller Type | Closed |
| Impeller Material | Noryl |
| Check Valve | Yes |
Installation |
|
| Discharge Type | Barb |
| Discharge | 0.38 “ |
| Suction Type | Screened |
| Product Length | 12 “ |
| Product Width | 6 “ |
| Product Height | 11.7 “ |
| Product Weight | 12.5 lb |
| Product Weight w/ Pack | 14 lb |
| Carton Length | 15.13 “ |
| Carton Width | 8.25 “ |
| Carton Height | 12.56 “ |
| Tubing Included | No |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 24 Months |
