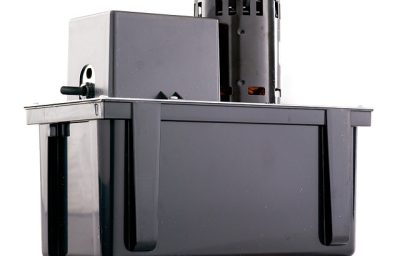

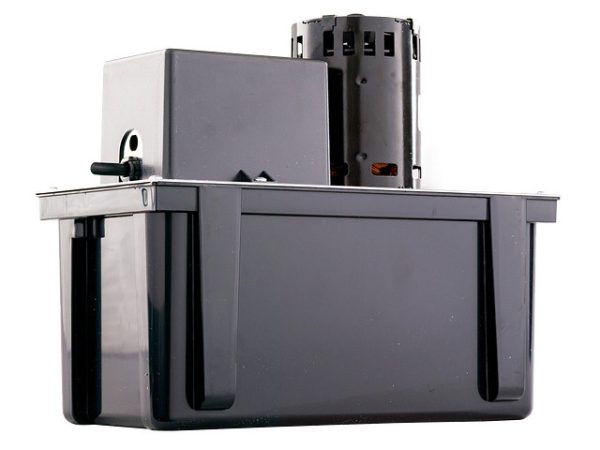

The VCL-24ULS Series Condensate Pumps are designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical.
| Item: | 553201 |
| Model: | VCL-24ULS (115V) |
Ratings |
|
| HP | 1/18 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 2.5 A |
| Full Load Watts | 148 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 4.5 gpm / 270 gph |
| Max PSIG | 10.4 PSI |
| Shut-Off | 24 ft |
| Safety Switch | Yes |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Plastic |
| Pump Body Material | Plastic |
| Check Valve | Yes |
Installation |
|
| Discharge Type | Barb |
| Discharge | 0.38 “ |
| Product Length | 12.11 “ |
| Product Width | 6 “ |
| Product Height | 10.4 “ |
| Pump Length | 12.11 “ |
| Product Weight | 7.8 lb |
| Product Weight w/ Pack | 8.2 lb |
| Carton Length | 12.88 “ |
| Carton Width | 6.5 “ |
| Carton Height | 11 “ |
| Tubing Included | No |
Other |
|
| Minimum Order Quantity | 1 |
| Accessories / Repair Kits |
|
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
