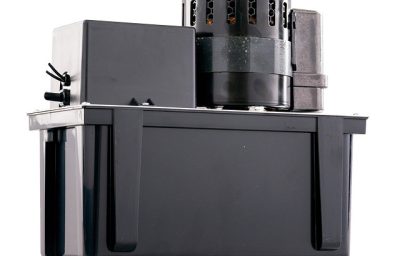

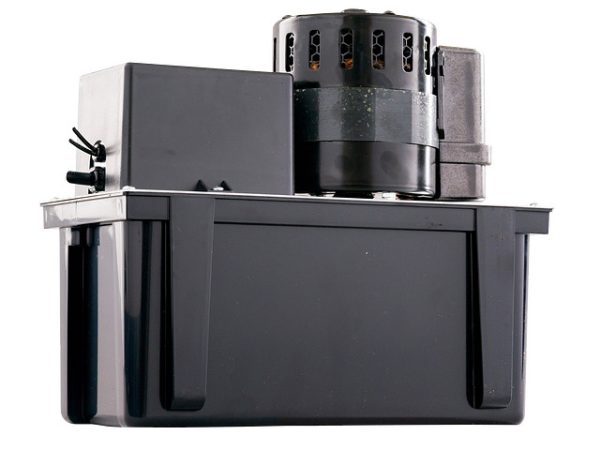

553240 – VCL-45ULS

The VCL-45ULS Series Condensate Pumps are designed for automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravity drainage is not possible or practical.

Item:	553240
Model:	VCL-45ULS

Ratings
HP	1/5 hp
Frequency	60 Hz
Amps – Full Load	3.5 A
Full Load Watts	185 W
Volts	115 VAC
Cord Length	6 ft
Maximum Flow Rate – 60Hz	7.5 gpm / 450 gph
Max PSIG	19.5 PSI
Shut-Off	45 ft
Safety Switch	Yes
Liquid
Max Fluid Temperature	120 °F

Materials of Construction
Pump Base Material	Plastic
Pump Body Material	Plastic
Check Valve	Yes
Installation
Discharge	0.38 “
Product Length	12.11 “
Product Width	6 “
Product Height	10.85 “
Pump Length	12.11 “
Product Weight	12.3 lb
Product Weight w/ Pack	12.8 lb
Carton Length	12.88 “
Carton Width	6.5 “
Carton Height	11 “
Tubing Included	No
Other
Minimum Order Quantity	1
Accessories / Repair Kits	Tank 153502 Cover, Switch Assy. 153537 Seal Ring 928025 Impeller 153520 Switch, Pump 950337 Overflow Detection Switch 950333 CV-35 3/8″” (9.5 mm) rigid plastic or copper tubing on both ends 599064 T-3/8 100 ft (640.1 m) of 3/8″” (9.5 mm) ID x 1/2″” (12.37 mm) OD clear tubing T20/T25 100 ft (640.1 m) of 3/8″” (9.5 mm) ID x 1/2″” (12.37 mm) OD clear tubing 599033
Electrical Agency Approvals	CSA/UL
Standard Warranty	12 Months
