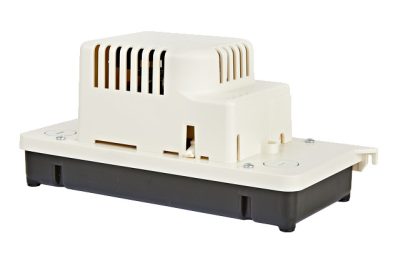

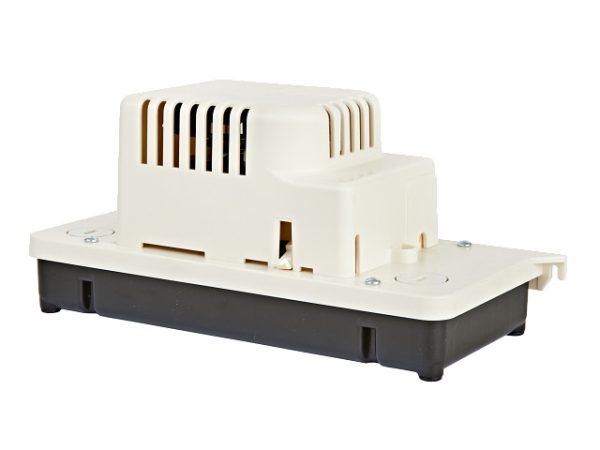

The VCCA-20 Series Condensate Pump is designed for the automatic collection and removal of condensate from air conditioning, refrigeration and dehumidification equipment when gravitydrainage is not possible or practical. Also, suitable for high efficiency oil and gas-fired condensing furnace and condensing boiler equipment.
| Item: | 554201101 |
| Model: | VCCA-20ULS |
Ratings |
|
| HP | 1/30 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.5 A |
| Full Load Watts | 93 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 1.33 gpm / 80 gph |
| Max PSIG | 8.6 PSI |
| Shut-Off | 20 ft |
| Safety Switch | Yes |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Check Valve | Yes |
Installation |
|
| Discharge | 0.38 “ |
| Product Length | 5 “ |
| Product Width | 12 “ |
| Product Height | 5 “ |
| Pump Length | 5 “ |
| Product Weight | 5 lb |
| Product Weight w/ Pack | 5.4 lb |
| Carton Length | 7 “ |
| Carton Width | 14 “ |
| Carton Height | 7 “ |
| Tubing Included | No |
Other |
|
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
