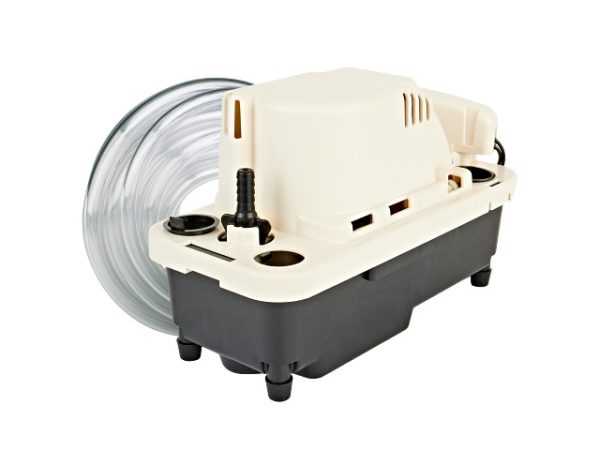

Our VCMA-20-PRO Series effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces, and condensing boilers.
| Item: | 554651 |
| Model: | VCMA-20ULST-PRO |
Our VCMA-20-PRO Series effectively delivers high-efficiency condensate removal from air conditioners, gas furnaces, and condensing boilers.
| Item: | 554651 |
| Model: | VCMA-20ULST-PRO |
Ratings |
|
| HP | 1/30 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 1.5 A |
| Full Load Watts | 75 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Continuous Duty | No |
| Maximum Flow Rate – 60Hz | 1.33 gpm / 80 gph |
| Max PSIG | 8.6 PSI |
| Max Flow Rate – 50Hz | 1.33 gpm / 80 gph |
| Shut-Off | 20 ft |
| Safety Switch | Yes |
Liquid |
|
| Max Fluid Temperature | 140 °F |
Materials of Construction |
|
| Check Valve | Yes |
Installation |
|
| Discharge | 0.38 “ |
| Product Length | 10.23 “ |
| Product Width | 4.75 “ |
| Product Height | 6.46 “ |
| Product Weight | 5.5 lb |
| Product Weight w/ Pack | 5.5 lb |
| Carton Length | 12 “ |
| Carton Width | 7 “ |
| Carton Height | 6.81 “ |
| Tubing Included | Yes |
Other |
|
| Minimum Order Quantity | 1 |
| Accessories / Repair Kits |
|
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 36 Months |
