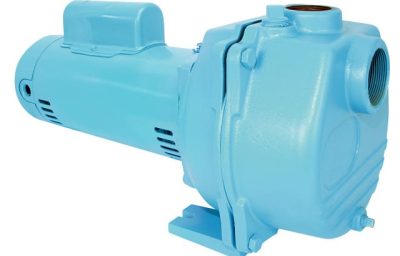

Little Giant’s 2 hp lawn sprinkler pump can be used for both residential and commercial lawn and turf sprinkler systems, irrigation, gardens, and general water transfer applications. Constructed of cast iron casing and seal plate for durability and long life, this pump includes single-phase capacitor start, and 115/230 dual voltage. Standard 5/8″ rotating mechanical seal, for a reliable seal against water leakage.
| Item: | 558298 |
| Model: | LSPH-200-C |
Ratings |
|
| HP | 2 hp |
| Frequency | 60 Hz |
| Phase | Single-Phase |
| Amps – Starting | 66.6 A |
| Volts | 230 VAC |
| Motor Type | Surface |
| Continuous Duty | Yes |
| Thermal Overload Protection | Yes |
| Maximum Suction Lift | 7 Meters |
| Motor Enclosure Type | ODP |
Liquid |
|
| Max Fluid Temperature | 120 °F |
Materials of Construction |
|
| Pump Base Material | Steel |
| Pump Body Material | Cast Iron |
| Impeller Type | Closed |
| Impeller Material | Bronze |
| Motor Shaft End – Material | Stainless Steel |
| Fasteners Material | Plated Steel |
| Seal Material | Phenolic/Ceramic x Buna-N |
| Seal Type | Mechanical Seal |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Discharge | 1.5 “ |
| Suction | 2 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 20.9 “ |
| Product Width | 9.63 “ |
| Product Height | 10.03 “ |
| Pump Length | 21 “ |
| Product Weight | 72.1 lb |
| Product Weight w/ Pack | 76 lb |
| Carton Length | 25.81 “ |
| Carton Width | 12.38 “ |
| Carton Height | 14.88 “ |
Other |
|
| Electrical Agency Approvals | CSA |
| Standard Warranty | 24 Months |
