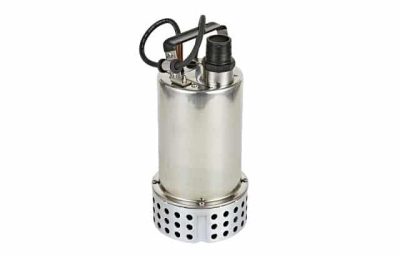

Submersible stainless steel drainage pump that fits inside a standard 8″ in-ground swimming pool main drain during the pool maintenance process to remove remaining water.
| Item: | 577306 |
Submersible stainless steel drainage pump that fits inside a standard 8″ in-ground swimming pool main drain during the pool maintenance process to remove remaining water.
| Item: | 577306 |
Ratings |
|
| HP | 3/4 hp |
| Frequency | 60 Hz |
| Volts | 115 VAC |
| Cord Length | 25 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 71 gpm / 4260 gph |
| Shut-Off | 42 ft |
| Shut Off Height – 60Hz | 42 ft |
| Max PSIG – 60Hz | 18.56 PSI |
Liquid |
|
| Min Fluid Temperature | 32 °F |
| Max Fluid Temperature | 82 °F |
Materials of Construction |
|
| Pump Base Material | Stainless Steel |
| Pump Body Material | Stainless Steel |
| Discharge Head Material | Stainless Steel |
| Intake Screen Material | Stainless Steel |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Suction Type | Screened |
| Product Length | 5.9 “ |
| Product Width | 5.9 “ |
| Product Height | 12.2 “ |
| Product Weight | 13 lb |
| Product Weight w/ Pack | 15 lb |
| Carton Length | 8.8 “ |
| Carton Width | 7.3 “ |
| Carton Height | 15.5 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSAus Listed |
| Standard Warranty | 12 Months |
