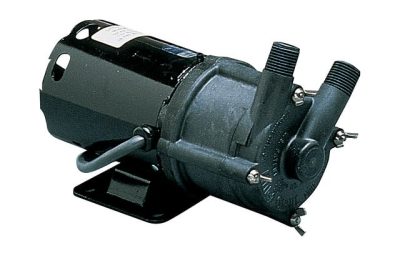

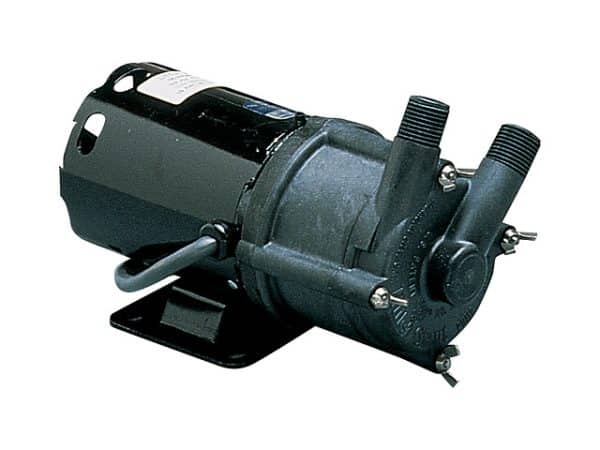

578603 – 3-MD-MT-HC
Magnetically driven pumps for highly corrosive chemicals and solutions. These pumps feature polyphenylene sulfide, Viton, carbon and ceramic parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft power cord and 3-prong molded plug.
| Item: | 578603 |
| Model: | 3-MD-MT-HC |
Ratings |
|
| HP | 1/25 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 1.3 A |
| Full Load Watts | 94 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 8.5 gpm / 510 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 16.2 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 21.9 ft |
| Max PSIG – 60Hz | 7 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 200 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | Glass Filled Thermoplastic |
| Check Valve | No |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – MNPT |
| Product Length | 8 “ |
| Product Width | 4 “ |
| Product Height | 5 “ |
| Pump Length | 8 “ |
| Product Weight | 6 lb |
| Product Weight w/ Pack | 6.5 lb |
| Carton Length | 12 “ |
| Carton Width | 7 “ |
| Carton Height | 7 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | cCSA-us-R |
| Standard Warranty | 12 Months |
