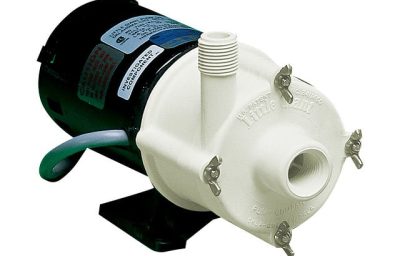

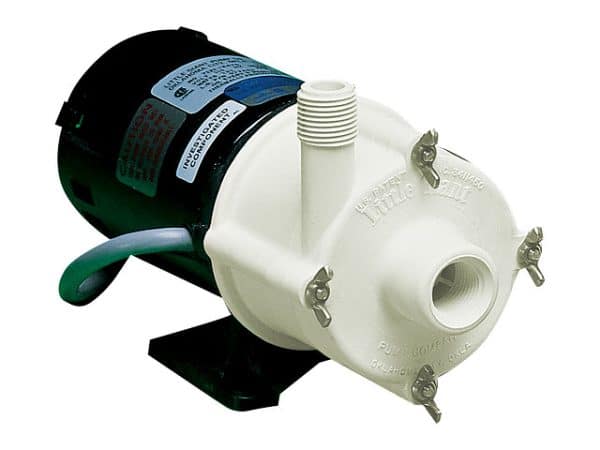

The 2-MD Magnetic Drive pump is designed for circulation of mildly corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other mildly corrosive chemicals and solutions that are compatible with the pump’s material of construction.
| Item: | 580012 |
| Model: | 2-MD |
Ratings |
|
| HP | 1/30 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 0.75 A |
| Full Load Watts | 100 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 8.5 gpm / 510 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 14.6 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 14.6 ft |
| Max PSIG – 60Hz | 6.3 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 8.5 “ |
| Product Width | 4 “ |
| Product Height | 4.3 “ |
| Product Weight | 6.3 lb |
| Product Weight w/ Pack | 6.25 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Standard Warranty | 12 Months |
