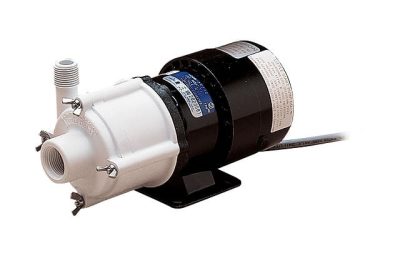

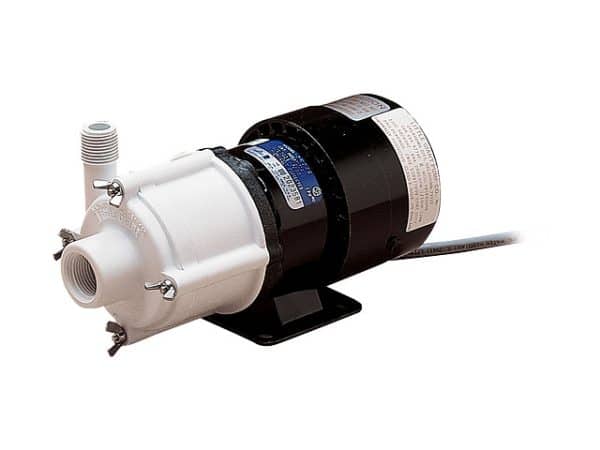

580503 – 2-MD-SC
Magnetically driven pumps for semi-corrosive chemicals and solutions. These pumps feature polypropylene, ceramic and Buna-N parts. Thermally protected open fan-cooled motor with sleeve bearings. 6 ft. power cord and 3-prong molded plug.
| Item: | 580503 |
| Model: | 2-MD-SC |
Ratings |
|
| HP | 1/25 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 1.43 A |
| Full Load Watts | 109 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 8.5 gpm / 510 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 14.6 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 14.6 ft |
| Max PSIG – 60Hz | 6.3 PSI |
| Switch Type | Manual |
Liquid |
|
| Min Fluid Temperature | 150 °F |
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 8.88 “ |
| Product Width | 3.9 “ |
| Product Height | 4.94 “ |
| Pump Length | 8.88 “ |
| Product Weight | 5.75 lb |
| Product Weight w/ Pack | 6.25 lb |
| Carton Length | 11.38 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
