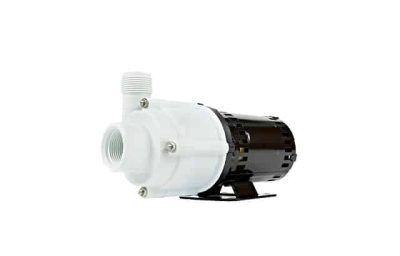

This Little Giant inline magnetic drive aquarium pump comes with a 6 foot power cord and specifically designed for in-line saltwater and freshwater aquarium circulation and filtration applications. It is corrosion resistant to salt solutions and many other semi-corrosive fluids and has a 1 inch FNPT inlet and 1 inch MNPT discharge, non-submersible (inline only).
| Item: | 580507 |
| Model: | 2-MDQX-SC |
Ratings |
|
| HP | 1/30 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.5 A |
| Full Load Watts | 110 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 12.83 gpm / 770 gph |
| Minimum Flow Rate – 60Hz | 1.67 gpm / 100 gph |
| Shut-Off | 8.1 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 8.1 ft |
| Max PSIG – 60Hz | 3.5 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – FNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 9.4 “ |
| Product Width | 3.88 “ |
| Product Height | 5.18 “ |
| Pump Length | 9.4 “ |
| Product Weight | 6 lb |
| Product Weight w/ Pack | 6.5 lb |
| Carton Length | 11.25 “ |
| Carton Width | 6.94 “ |
| Carton Height | 6.38 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
