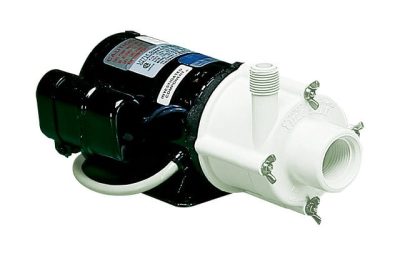

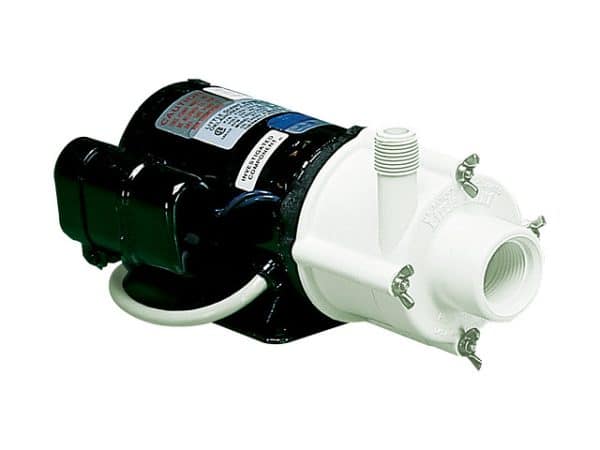

580513 – 2-MD-SC
The SC Series magnetic drive pump is ideal for the circulation of moderately corrosive acids, alkalis, solvents, brine, plating solutions, sterile solutions, and other moderately corrosive chemicals and solutions. Features a 1/30 hp open FC motor, 230-volt, glass-filled polypropylene magnet housing and volute and 6′ cord.
| Item: | 580513 |
| Model: | 2-MD-SC |
Ratings |
|
| HP | 1/25 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 0.64 A |
| Full Load Watts | 100 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 8.5 gpm / 510 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 14.6 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 14.6 ft |
| Max PSIG – 60Hz | 6.3 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
| Discharge Material | Thermoplastic |
| Seal Material | Nitrile Rubber |
| Seal Type | O-ring |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 8.9 “ |
| Product Width | 4 “ |
| Product Height | 5 “ |
| Pump Length | 8.9 “ |
| Product Weight | 6.3 lb |
| Product Weight w/ Pack | 6.25 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Standard Warranty | 12 Months |
