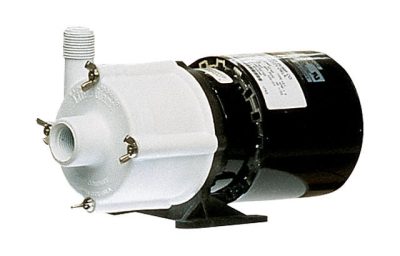

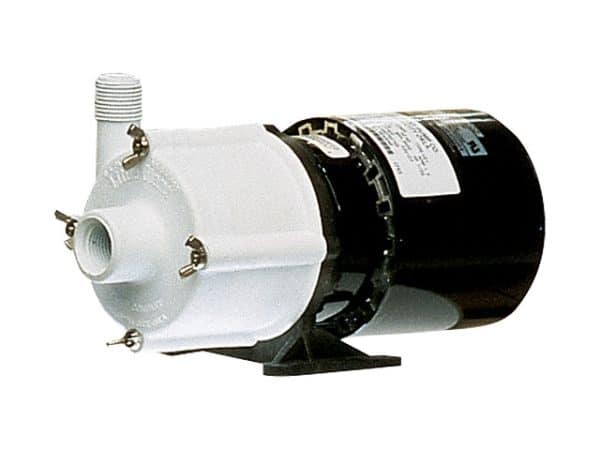

581012 – TE-3-MD
Magnetically driven pump for mildly corrosive chemicals and solutions. The MD Series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersed use. Thermally protected totally enclosed fan-cooled motor with ball bearings. 6′ (1.8m) power cord with no plug.
| Item: | 581012 |
| Model: | TE-3-MD |
Ratings |
|
| HP | 1/20 hp |
| Frequency | 50Hz/60Hz |
| Amps – Full Load | 0.8 A |
| Full Load Watts | 115 W |
| Volts | 230 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 9.8 gpm / 588 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 53.48 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 16.3 ft |
| Max PSIG – 60Hz | 7 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 8.5 “ |
| Product Width | 4 “ |
| Product Height | 4.3 “ |
| Product Weight | 8 lb |
| Product Weight w/ Pack | 8 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Standard Warranty | 12 Months |
