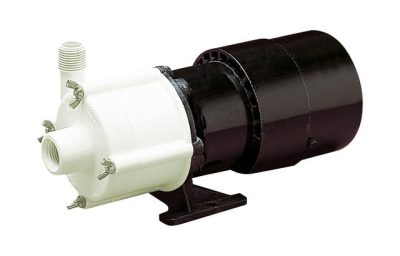

Little Giant 4-MD 690 GPH – Magnetic Drive Pump with 6′ power cord is designed for mildly corrosive chemicals and solutions. The MD Series features leakproof, seal-less magnetic drives and are designed for in-line, non-submersed use. Thermally protected open fan-cooled motor with ball bearings. 6 ft. power cord and 3-prong molded plug.
| Item: | 582002 |
| Model: | 4-MD |
Ratings |
|
| HP | 1/12 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 2.4 A |
| Full Load Watts | 213 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Maximum Flow Rate – 60Hz | 11.5 gpm / 690 gph |
| Minimum Flow Rate – 60Hz | 1 gpm / 60 gph |
| Shut-Off | 23.7 ft |
| Minimum Head – 60Hz | 1 ft |
| Shut Off Height – 60Hz | 24.3 ft |
| Max PSIG – 60Hz | 10.2 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Pump Body Material | Plastic |
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Suction Type | Threaded – FNPT |
| Product Length | 9.25 “ |
| Product Width | 3.88 “ |
| Product Height | 4.94 “ |
| Pump Length | 9.25 “ |
| Product Weight | 8 lb |
| Product Weight w/ Pack | 8.5 lb |
| Carton Length | 11.31 “ |
| Carton Width | 7.06 “ |
| Carton Height | 6.44 “ |
Other |
|
| Standard Warranty | 12 Months |
