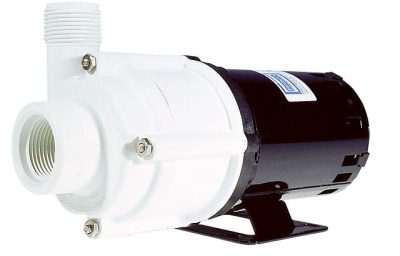

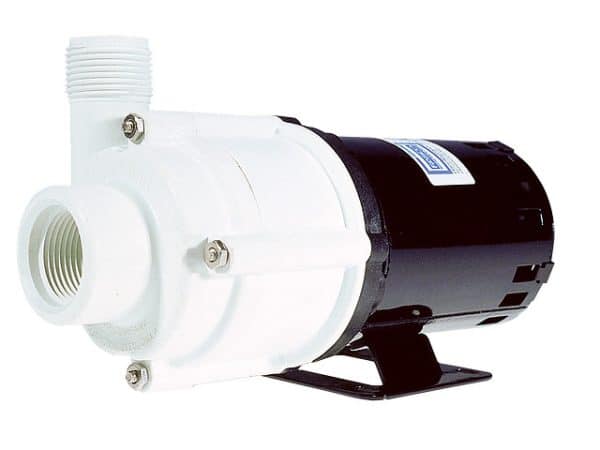

Our 4-MDQX-SC Series aquarium pump is specifically designed for in-line saltwater and freshwater aquarium circulation and filtration applications. It has a thermally protected motor with 3-prong molded plug and 6 ft. power cord. It is corrosion resistant to salt solutions and many other semi-corrosive fluids. 1 inch FNPT inlet, 1 inch MNPT outlet with barbs for 1-1/4 inch I.D. tubing.
| Item: | 582507 |
| Model: | 4-MDQX-SC |
Ratings |
|
| HP | 1/10 hp |
| Frequency | 60 Hz |
| Amps – Full Load | 1.3 A |
| Full Load Watts | 145 W |
| Volts | 115 VAC |
| Cord Length | 6 ft |
| Continuous Duty | Yes |
| Maximum Flow Rate – 60Hz | 22.08 gpm / 1325 gph |
| Minimum Flow Rate – 60Hz | 0 gpm / 0 gph |
| Shut-Off | 17 ft |
| Minimum Head – 60Hz | 0 ft |
| Shut Off Height – 60Hz | 17 ft |
| Max PSIG – 60Hz | 7.4 PSI |
| Switch Type | Manual |
Liquid |
|
| Max Fluid Temperature | 150 °F |
Materials of Construction |
|
| Discharge Head Material | Thermoplastic |
| Impeller Material | GF Polypropylene |
| Seal Material | Nitrile Rubber |
Installation |
|
| Discharge Type | Threaded – MNPT |
| Discharge | 1 “ |
| Suction Type | Threaded – FNPT |
| Product Length | 10.74 “ |
| Product Width | 3.88 “ |
| Product Height | 5.46 “ |
| Pump Length | 10.74 “ |
| Product Weight | 10 lb |
| Product Weight w/ Pack | 10.5 lb |
| Carton Length | 13.13 “ |
| Carton Width | 8.63 “ |
| Carton Height | 5.94 “ |
Other |
|
| Minimum Order Quantity | 1 |
| Electrical Agency Approvals | CSA/UL |
| Standard Warranty | 12 Months |
